Operations panel

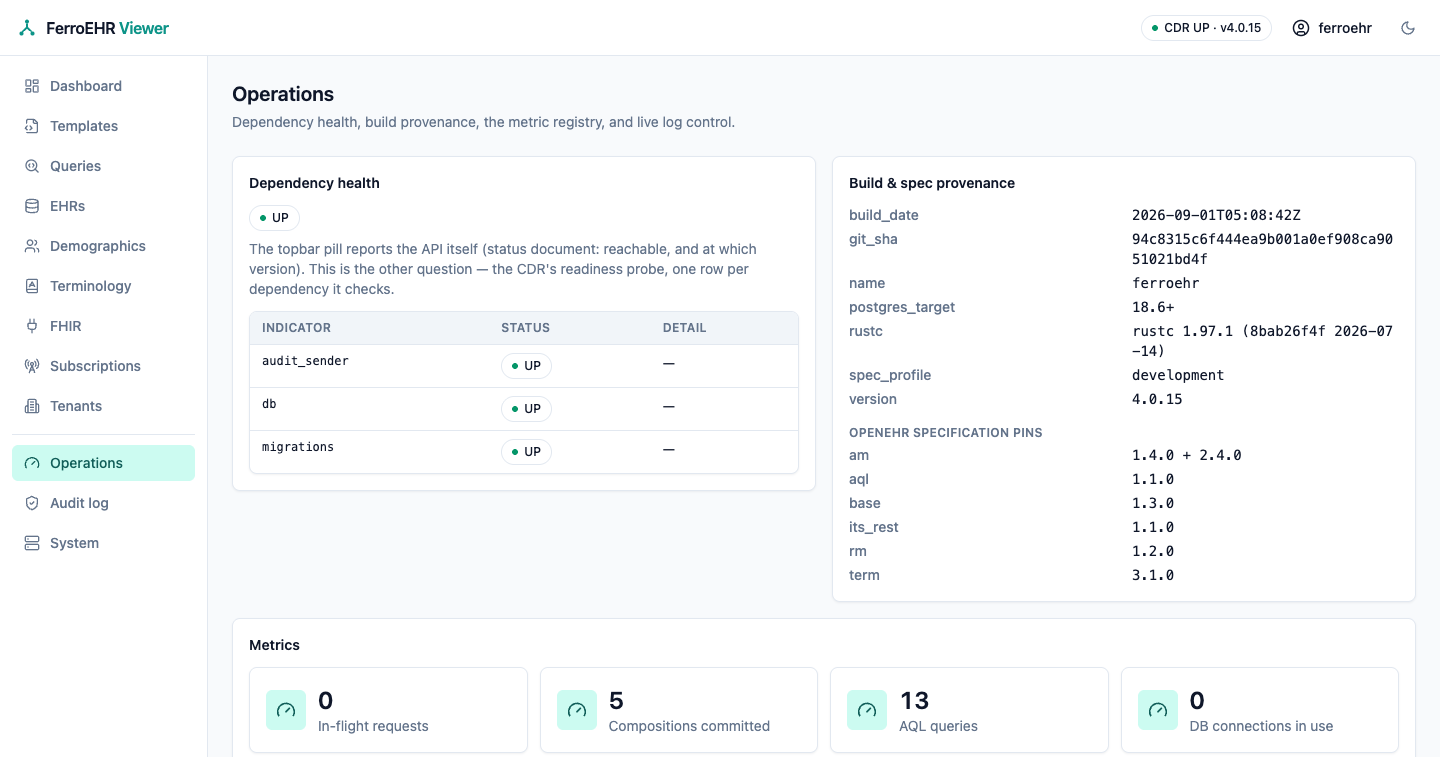

The Operations screen is the console’s operator view of a running CDR: dependency health, what exactly is deployed, the live metric registry, and runtime log control. Everything on it comes from the CDR’s own operational endpoints over HTTP; the console has no privileged channel.

• When it appears
• Dependency health
• Build & spec provenance
• Metrics
• Runtime configuration
• Log level

When it appears

The panel is probe-and-hide: on every page load the console asks the CDR for GET /management/info, and the sidebar entry appears only if that endpoint exists. A 404 (the CDR’s answer when the management surface is off, which is the default) hides the entry entirely; any other answer counts as present, so a refusal reaches you as a message on the card that asked rather than as a missing screen.

To get the panel, enable the surface on the CDR and give each endpoint you want an access level (Operations → The management surface). Every endpoint ships off, so nothing is mounted until you name it:

[management]
enabled = true

[management.endpoints]
info = "admin_only"     # the availability probe — enable it alongside the rest
metrics = "admin_only"
env = "admin_only"
loggers = "admin_only"

The levels are off (not mounted, 404), private (any authenticated principal), admin_only, and public (served outside authentication). A card whose endpoint is off says so in place instead of failing, but info is the probe, so leaving info at off hides the whole panel.

If the CDR serves management on its own internal listener (management.port) or under a renamed base path (management.base_path), point the console at it with one setting, the full prefix, including the path:

FERROEHR_VIEWER__CDR__MANAGEMENT_BASE_URL=http://cdr.internal:9100/management

Unset, the console derives {cdr.base_url}/management.

Note

The management endpoints are gated server-side at the level you chose. The console shows the panel whenever the surface exists; being allowed to read a particular endpoint is the CDR’s per-request decision, and a refusal is reported on the card that asked, naming what to do about it.

Dependency health

The health card reads the CDR’s public readiness probe (GET /health/readiness, always served, no configuration): the aggregate state plus one row per dependency the server checks (the database ping, the migrations probe, and any optional components) with the CDR’s own detail text where it gave one.

This is deliberately a different question from the status pill in the topbar, which polls the product status document (GET /ferroehr/rest/status):

The card states that split on screen, and nothing else in the console re-reads either claim.

Build & spec provenance

Straight from GET /management/info: the CDR’s version, the git commit the binary was built from, its build timestamp and rustc version, the PostgreSQL target, and under their own heading the deployment’s active spec_profile and the openEHR specification versions that profile selects. This is the card to screenshot into an incident report: it says exactly what is running.

Metrics

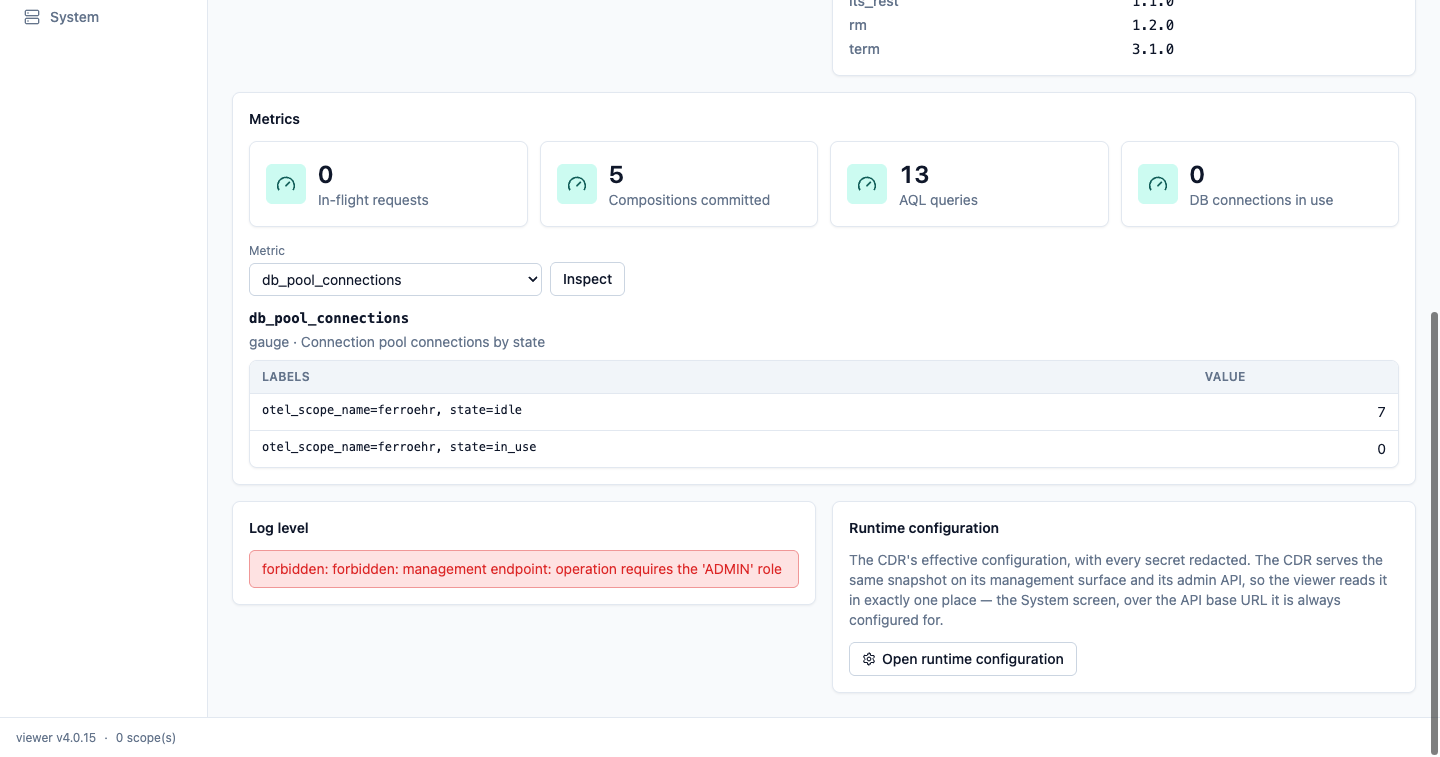

Four headline tiles (in-flight requests, compositions committed, AQL queries, database connections in use) sit above a browser over the CDR’s whole metric registry: pick a metric, and the panel renders its current samples with their labels: the same numbers Prometheus scrapes, without a Prometheus.

The selection lives in the URL (/operations?metric=db_pool_connections), so a view is shareable and survives a refresh, and the picker works before the browser app has loaded. A tile reads — when the deployment records nothing for that metric yet.

For dashboards and alerting, scrape GET /management/prometheus instead; the panel is for looking, not for collecting.

Runtime configuration

The CDR serves its redacted effective configuration on both its management surface and its admin API, and it is the same snapshot, so the console reads it in exactly one place: the System screen. This card links there rather than rendering a second copy.

Log level

The log card shows the filter in effect right now and the boot filter a reset restores, and lets an operator change the live filter without a restart (POST/DELETE /management/loggers):

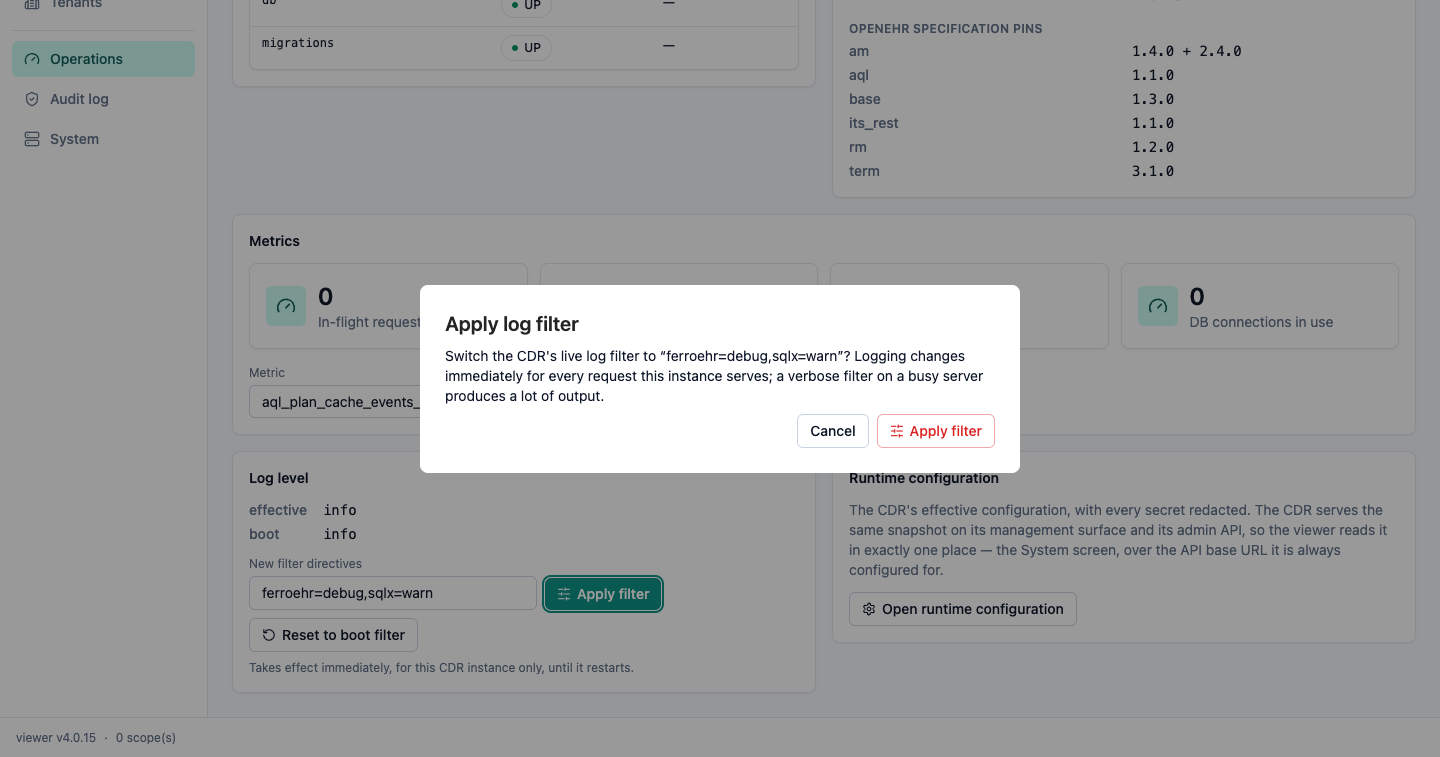

Type tracing-style directives (ferroehr=debug,sqlx=warn), press Apply filter, and confirm: the dialog spells out that logging changes immediately for every request the instance serves. Reset to boot filter puts the startup value back. Both outcomes are reported as a toast, and the card re-reads the CDR’s answer, so what you see is what the server confirmed, not what was asked for.

Important

A log-filter change applies to that CDR instance only and lasts until it restarts. Behind a load balancer, each instance is set separately; for a permanent change, set log.filter in the server configuration.
