FerroEHR Viewer

ferroehr-viewer is a standalone web console for managing an ITS-REST-1.1.0 CDR, this server or any other. It is a pure REST client: everything it does goes through the CDR’s public API (never the database), so what you see in the console is exactly what the API serves. The whole application is Rust (Leptos SSR + WebAssembly); there is no hand-written JavaScript anywhere, including its browser tests.

Running it

The quickstart compose ships the console as the ferroehr-viewer service on port 3000, behind the viewer profile, so it is opt-in and does not start with a plain docker compose up:

docker compose --profile viewer up
# → http://localhost:3000  (log in with the quickstart user ferroehr/ferroehr)

Standalone, point it at any CDR:

docker run -p 3000:3000 \
  -e FERROEHR_VIEWER__CDR__BASE_URL=https://cdr.example.org \
  ghcr.io/rubentalstra/ferroehr-viewer

On Kubernetes

The Helm chart deploys the console as its own Deployment, Service and ServiceAccount, with an optional Ingress and a NetworkPolicy that confines its egress to the CDR and DNS: the console is a REST client of the CDR by mandate, so the chart enforces that rather than trusting it. Off by default, and off renders nothing:

# values.yaml
viewer:
  enabled: true
  ingress:
    enabled: true
    hosts:
      - host: console.example.org
        paths:
          - path: /
            pathType: Prefix
  auth:
    oidc:
      enabled: true
      issuer: https://keycloak.example/realms/ferroehr
      clientId: ferroehr-console
      publicBaseUrl: https://console.example.org
  # the OIDC client secret is MOUNTED from a Secret you create, never env-borne
  existingSecret: console-oidc

It needs no database credential and never reaches the database. Before you enable OIDC: a registered client whose redirect URI matches publicBaseUrl, and a Secret holding its client secret. To turn the console off, set viewer.enabled: false and upgrade; every console object is removed and the CDR is untouched.

Note

To scale the console past one replica, set the same session.secret on every replica: the session is a sealed cookie any key-holding replica can serve. Without a configured secret each replica seals with its own ephemeral key, and visitors get signed out whenever a request lands on another pod.

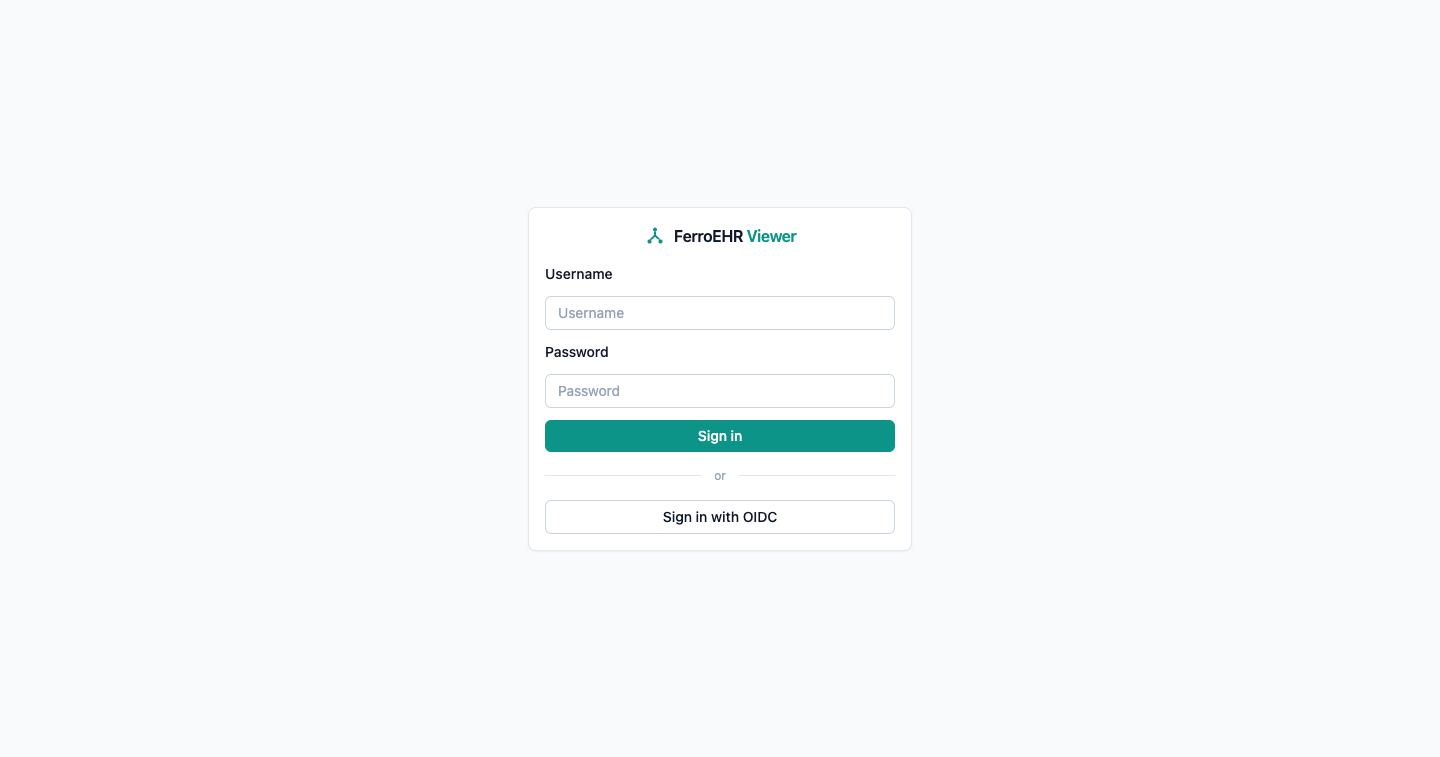

Signing in

The sign-in page offers exactly the methods that can actually work: the console’s configured login modes intersected with the authentication schemes the CDR advertises (its WWW-Authenticate challenge). A Basic form is never shown against a bearer-only CDR, and vice versa. If the CDR cannot be reached at all, the page falls back to the console’s own configuration and renders anyway, and the outage then surfaces on the login attempt instead of hiding the page. Sign-in is served fully rendered and works with JavaScript disabled.

The console manages no accounts of its own: it authenticates you against the CDR (Basic) or your identity provider (OIDC), and there are no user, role, or password screens to find; those live in the CDR’s configuration and in your IdP.

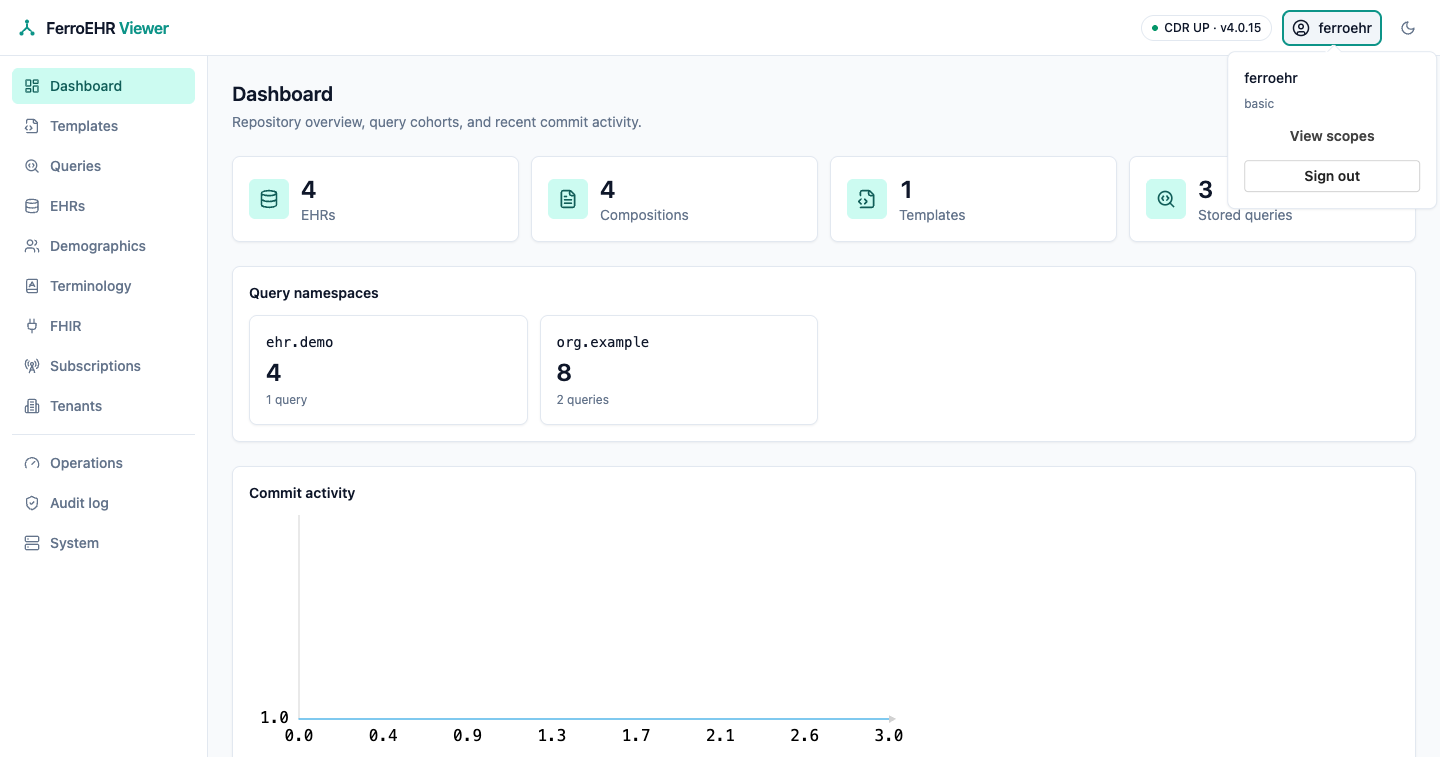

The console ships a full dark theme (the toggle persists per browser), and every screen in this chapter has one, and Dark mode is the gallery. The user menu opens the access drawer:

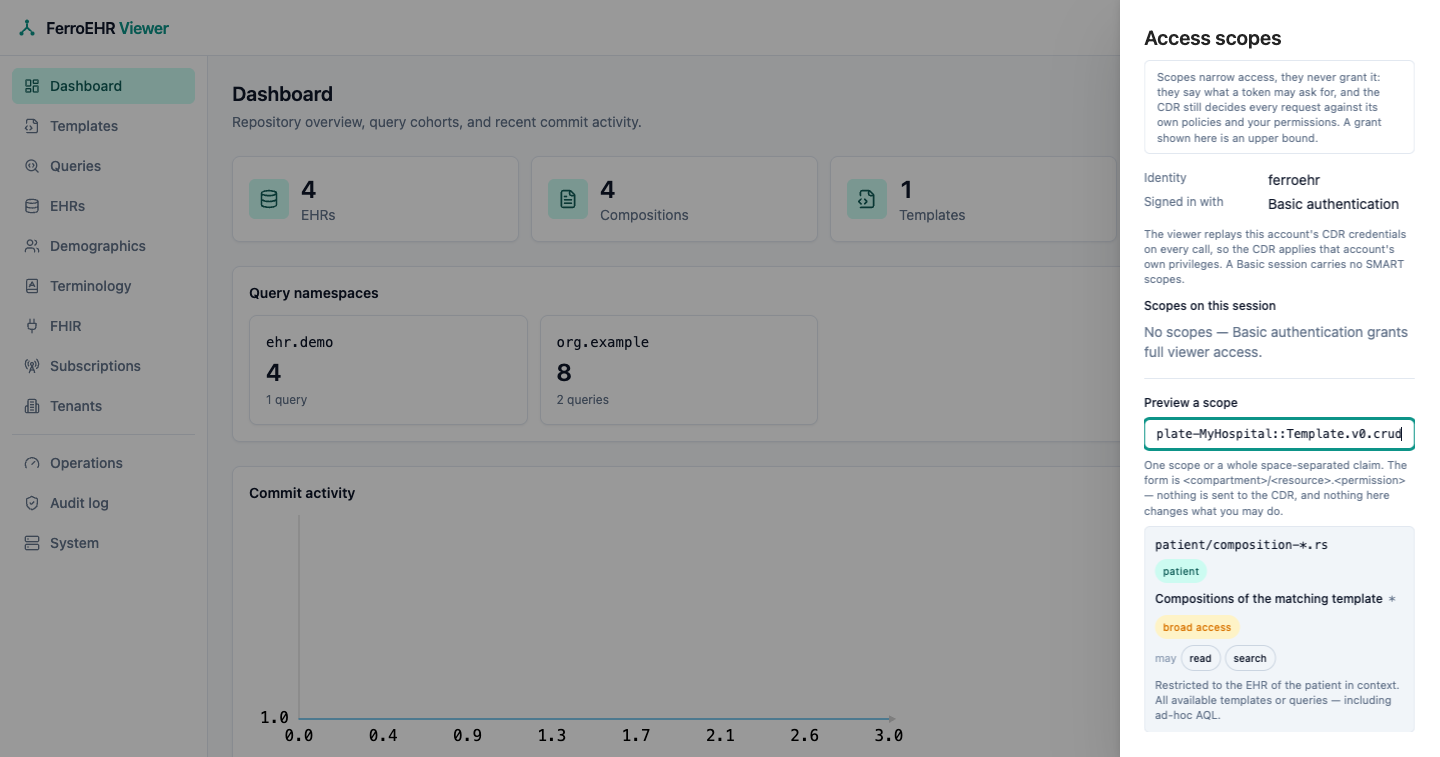

The access drawer

“View scopes” answers what may this session do, and who says so:

  • the authenticated principal and how it signs in: a Basic session replays its CDR account (and carries no SMART scopes), an OIDC session carries an access token whose scopes are listed;
  • every scope on the session rendered as its parsed grant: the compartment it delegates to (patient / user / system), the resource family and id pattern it reaches, and the create/read/update/delete/search operations it permits, with a broad access marker on a bare *;
  • a previewer: paste any scope string, or a whole space-separated claim, and read the same rendering. A scope shaped like a resource scope but malformed explains what the grammar expected instead of quietly reading as nothing.

The reading is not the console’s own interpretation: it parses with the same module the CDR’s SMART scope gate enforces with, so the two can never drift. Scopes narrow access and never grant it; the CDR remains the enforcer, and a previewed grant is an upper bound.

Configuration

One TOML file (ferroehr-viewer.toml, searched in the working directory and /etc/ferroehr/viewer.toml, or pointed at with FERROEHR_VIEWER_CONFIG), with FERROEHR_VIEWER__<SECTION>__<KEY> environment overrides. Unknown keys are refused at startup, exactly as on the CDR:

KeyDefaultMeaning
cdr.base_urlhttp://localhost:8080The CDR origin (the ITS-REST base path is appended).
cdr.request_timeout_secs30Per-request timeout toward the CDR.
cdr.management_base_urlderived from cdr.base_urlThe CDR’s management surface, base path included; set it when the CDR serves management on its own internal listener (management.port) or under a renamed base path. Drives the Operations panel.
auth.basic_enabledtrueOffer the username/password form (validated against the CDR; held server-side).
auth.oidc.enabledfalseOffer OIDC login (authorization code + PKCE).
auth.oidc.issuer / client_id / client_secret (_file) / public_base_url / scopes—The OIDC client registration; public_base_url is the console’s externally visible origin for the redirect URI. Enabling OIDC without issuer, client id and public base URL is a startup error.
auth.oidc.resolve—A host=ip:port override for the issuer host, for split-horizon DNS: the console reaches an issuer whose canonical name only resolves inside the container network, while browsers and tokens keep the canonical URL.
login.noticeemptyInformational text on the sign-in card, line breaks preserved. A demo or evaluation deployment states its public credentials and usage expectations here.
login.linksemptyLinks under the sign-in card, each { label, href } — an API reference, a documentation page.
session.idle_minutes60Session idle expiry (sliding; carried inside the sealed cookie).
session.cookie_securetrueOn by default; set false only for plain-HTTP local development.
session.secretemptyThe session-cookie sealing key: base64 of at least 64 bytes (openssl rand -base64 64). Every replica of a scaled deployment must hold the same value. Empty = an ephemeral per-instance key, fine for exactly one replica.
session.secret_file—Path to a file holding the sealing key; wins over session.secret.

The console is stateless: it has no database and keeps no local files of its own. Everything it shows, including how stored queries are grouped, which is derived from the namespace in each query’s qualified name, lives in the CDR and is read over ITS-REST, so nothing here needs backing up and every replica shows the same repository. Sessions are a sealed cookie (AES-256-GCM, keyed by session.secret), so any replica holding the key can serve any signed-in visitor.

Login and sessions live in the console’s backend; the browser stores only the encrypted session cookie — CDR credentials and bearer tokens never reach it in readable form.

The screens

  • Dashboard: record counts, per-namespace stored-query match tiles, and a commit-activity trend. See Dashboard & queries.
  • Templates: upload and inspect operational templates. See Templates & EHR browsing.
  • Queries: the point-and-click Query Builder, the raw AQL editor, and stored-query management. See Dashboard & queries.
  • EHRs: browse EHRs, folders, compositions, version history, and the item tags on any of them. See Templates & EHR browsing.
  • Demographics: browse and edit the five demographic party kinds, their relationships, version history, and tags. See Demographics.
  • FHIR: the connector’s mapping-store editor, a read-path viewer, and a validate-only dry-run panel; appears only when the CDR’s FHIR API is enabled. See FHIR connector admin.
  • Terminology: browse the terminologies the CDR serves, define a code, expand a value set, and test membership or subsumption. See Terminology.
  • Audit log: browse the CDR’s ATNA security audit trail (see below).

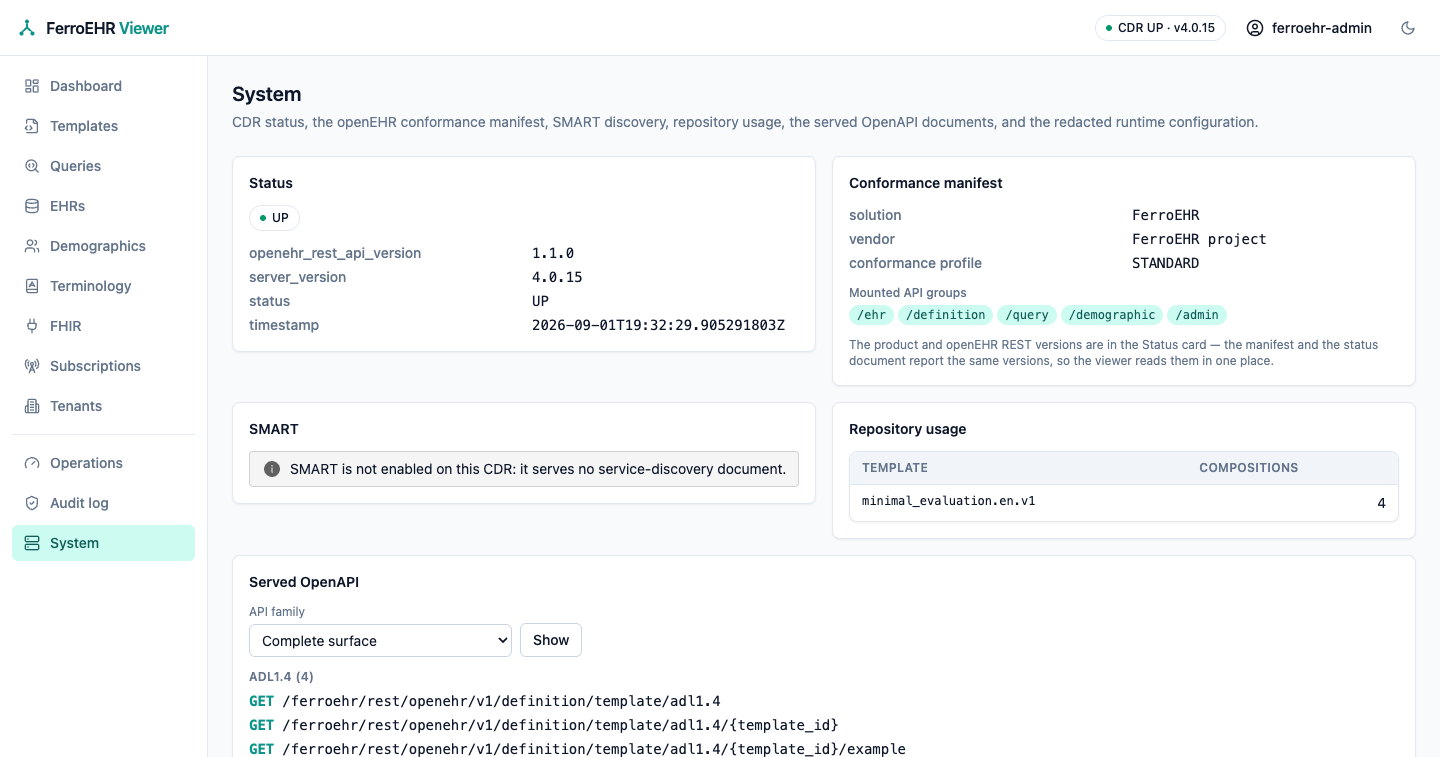

  • System: CDR status, the openEHR conformance manifest (what the server advertises about itself through the System API: product, vendor, claimed conformance profile, and the API groups it actually mounts), SMART discovery, repository usage, the server’s own OpenAPI documents. Pick the complete surface or one API family, and the choice stays in the URL, so the redacted runtime configuration, and a shortcut into the audit browser.
  • Operations: dependency health, build and spec provenance, the metric registry, and runtime log control. Appears only when the CDR serves its management surface. See Operations panel.
  • Tenants: the tenant registry, and the tenant this session’s credential resolves to. Appears only when the CDR runs with multi-tenancy on. There is no tenant switcher: tenancy is credential-derived, and the console displays it rather than choosing it. See Tenant registry.
  • Subscriptions: the event subscriptions that decide which committed versions the CDR publishes to a message broker. Appears only when the CDR serves its subscription API. See Event subscriptions.

Every one of them is themed twice; Dark mode shows the dark half of the console screen by screen.

Paging

Every listing is paged, and the page lives in the URL: a page is shareable and bookmarkable, a reload lands on the same rows, and the browser’s back and forward buttons walk the pages. The tables the console holds in full (Templates, Queries) share one footer under the table: which rows are on screen out of how many (26–50 of 137 templates), previous/next, and a rows-per-page choice of 25/50/100 (?page= and ?size=). The AQL-backed listings (EHRs, an EHR’s compositions) page through ?offset= links, and the audit browser through ?page= beside its filters. Every one of these controls is a plain link, so paging works before the page’s WebAssembly loads, and a page link carries the screen’s other parameters (the tab you are on, the filters you set) across with it.

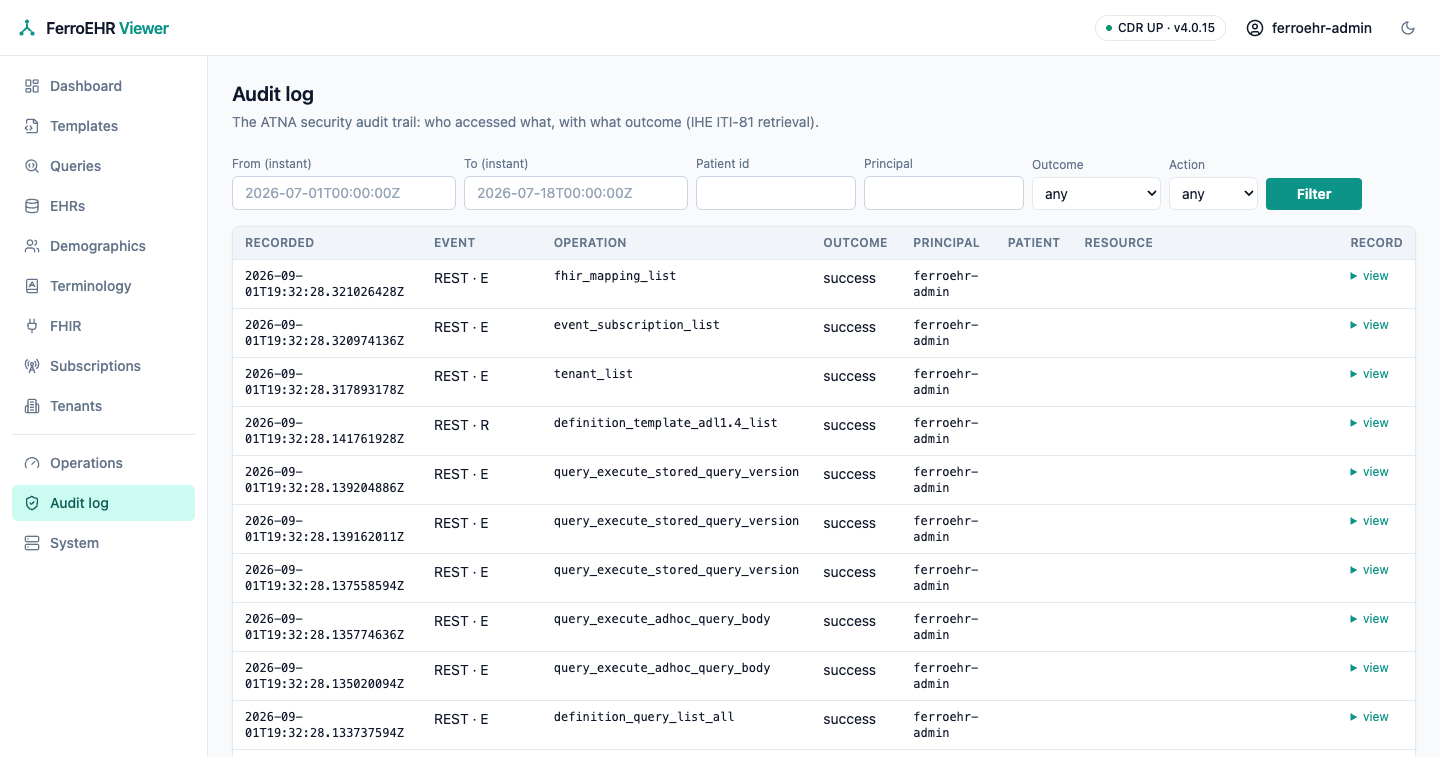

Audit log

The Audit log screen browses the CDR’s security audit trail (who accessed what, with what outcome) through the standard IHE ITI-81 retrieval (GET /fhir/r4/AuditEvent; see the Audit trail chapter). Filter by event-time window, patient, principal, outcome, or action; every filter lives in the URL, so a filtered view is shareable and refresh-safe. Each row opens the full stored FHIR R4 AuditEvent record.

The audit trail is an operator surface: under role-based access control the screen requires the CDR’s admin role, and when the CDR’s local audit store is disabled the screen says so instead of erroring.

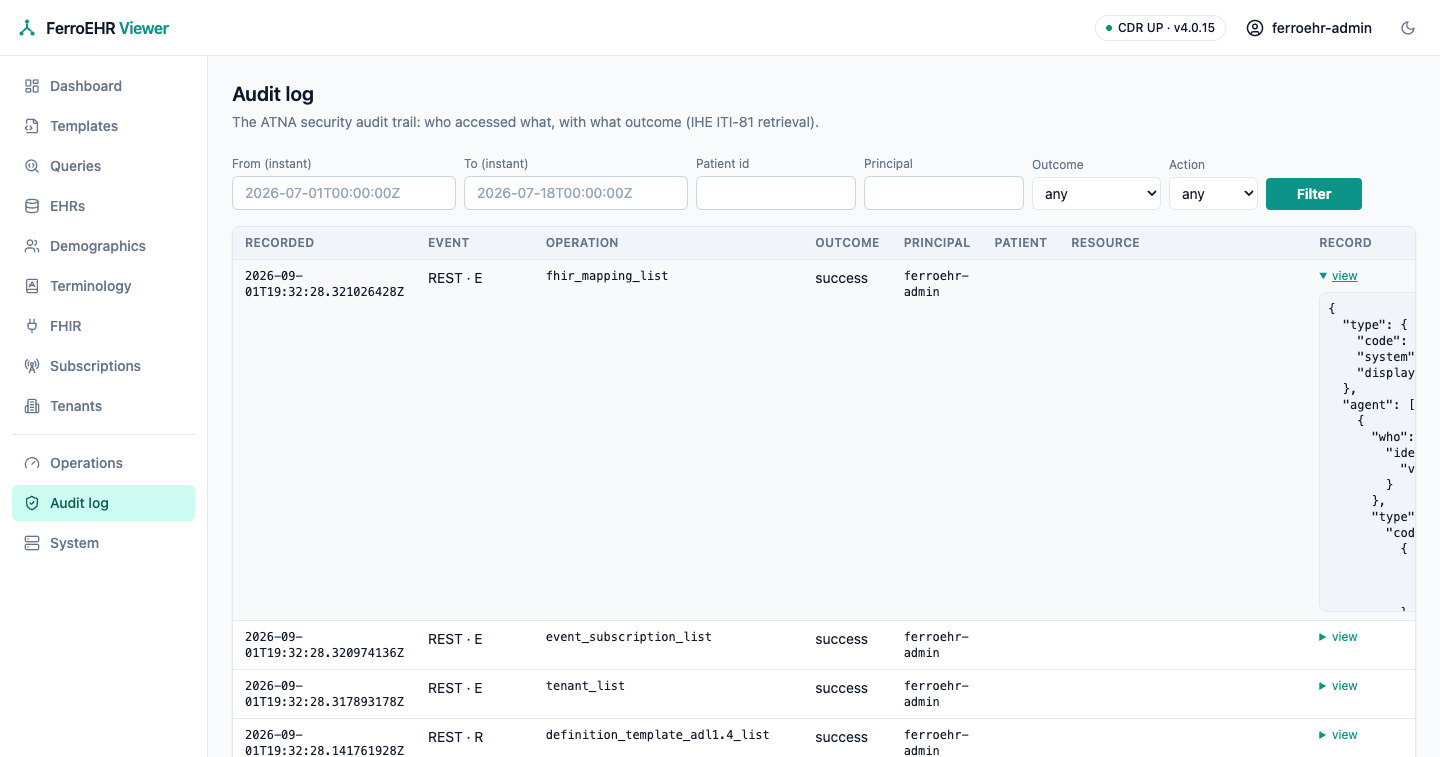

Each row’s view disclosure opens the full stored AuditEvent record: exactly what the ITI-81 API serves:

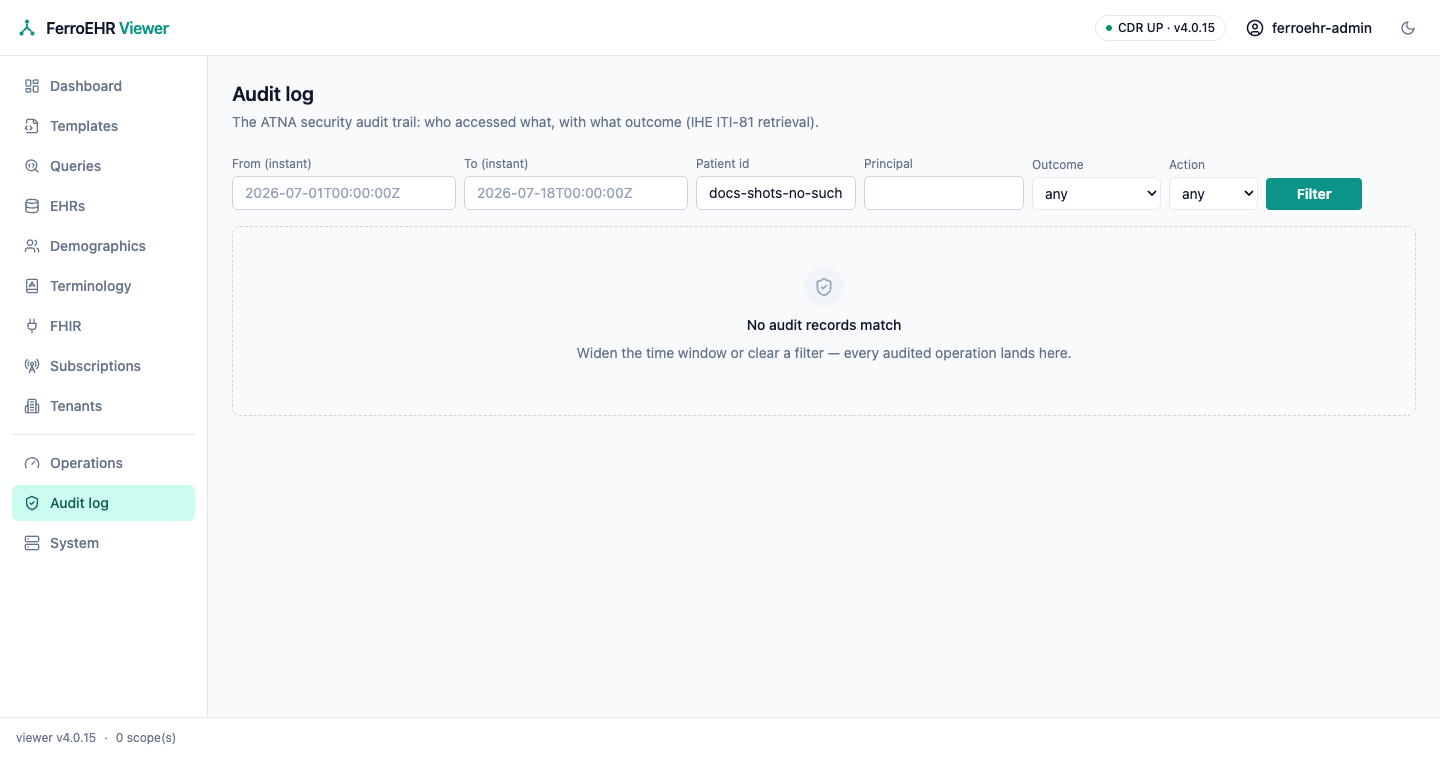

A filter that matches nothing renders a distinct empty state, so “no records” is always visibly different from “records you haven’t found”:
