Templates & EHR browsing

These are the console’s read-and-write screens over clinical content: the templates the CDR validates against, and the EHRs, folders, compositions and contributions committed under them. Every screen here is a view of the CDR’s public API, so anything you change is a normal openEHR write that every other client sees.

• Template Manager
  • Deleting a template
  • ADL 2 templates
    • Deleting an ADL 2 template
• EHR browser
  • Filtering an EHR’s compositions
  • Deleting an EHR
  • Creating EHRs and committing compositions
  • Committing several changes at once
  • Directory editing
• Composition viewer
  • Tags on a composition
  • Deleting a composition
  • EHR status
  • Tags on the EHR status
  • EHR status history
  • Tags in this EHR

Template Manager

Upload operational templates (the CDR’s validation diagnostics surface verbatim on rejection) and browse what is installed. The screen serves both archetype-model families, switched by the ADL 1.4 / ADL 2 pills under the title. The choice is in the URL (/templates is the ADL 1.4 listing and /templates?family=adl2 the ADL 2 one) so either is a shareable link, and the filter and the paging footer work the same in both.

Both families upload the same way: the button at the top right of the screen (Upload OPT or Upload ADL2, depending on the family you are looking at) opens a dialog where you either choose a file or paste the source. Both inputs feed one editor, so a chosen file can be read over, corrected, and sent from there. Upload template stays disabled until there is something to send, a refusal keeps the dialog open with the server’s diagnostic beside the source it rejected, and a successful upload closes the dialog and refreshes the list.

The template detail screen shows the path catalog (the template’s tree with each node’s archetype path, RM type, and constrained value sets) plus the raw OPT XML and a CDR-generated example composition in any supported format.

The list filters as you type, matching a template’s id, its concept, or its root archetype id, and is paged by the shared footer under the table; rows on screen out of how many, previous/next, and 25/50/100 rows per page, all in the URL (see Paging). The filter narrows the rows; the footer counts what the filter left.

The list also shows each template’s root archetype id, and the detail screen opens with an identity card (concept, version, default language, languages, and the template UID) read from the operational template itself.

Deleting a template

When the CDR’s admin API is enabled, each list row and the detail screen offer Delete. It opens a confirmation dialog naming that template, and nothing is sent until you confirm there. The CDR refuses a template that a committed composition still uses; the refusal is shown with the referencing count, so delete or migrate those compositions first, and it likewise refuses a session without the ADMIN role, naming what is missing. If the admin API is off, no delete button is shown at all: the console asks the server which API groups it serves (the openEHR System API conformance manifest) before offering any of them.

Warning

This is a physical delete of the template registration, not a versioned one. The server-side switch is admin.enabled (FERROEHR__ADMIN__ENABLED), off by default; see [admin].

ADL 2 templates

The ADL 2 family lists the operational templates the CDR compiled from ADL 2 sources. An ADL 2 artefact is identified by its archetype HRID (openEHR-EHR-COMPOSITION.vitals.v1.0.0) whose trailing .v1.0.0 is the artefact’s own release version, so several versions of one template appear as separate rows and the list shows all of them.

Uploading works exactly as it does for ADL 1.4, through the same dialog; what differs is the artefact. The CDR ingests the ADL 2 source as plain text rather than an XML document, so the dialog accepts .adls files and the source you paste is sent verbatim. If the openEHR-ADL engine refuses it, its diagnostics (the AOM 2 rule codes with their line and column) appear in full under the editor as well as in the failure notification, so the source can be corrected in place and re-sent.

Opening a row shows the artefact’s three server-side representations plus a derived view:

• Source: the stored ADL 2 text, exactly as the CDR holds it.
• AOM2 JSON: the same operational template as canonical JSON (OPERATIONAL_TEMPLATE), which is where the constraint structure, node ids and occurrences are readable.
• Example: a composition the CDR generates from the template, in canonical JSON, canonical XML, FLAT or STRUCTURED.
• Path catalog: the same expandable tree and node inspector the ADL 1.4 detail shows, built by the console from the AOM2 JSON.

The Version bar above the panes pins the Source and AOM2 JSON reads to a particular release version. The chips are the versions the CDR actually holds for that HRID family, and As stored returns to the artefact the link named. The box beside them also accepts a prefix (1 or 1.0) which the CDR resolves to the highest matching version, so 1 on a family holding 1.0.0 and 1.1.0 shows 1.1.0. Whichever you pick lands in the URL as ?version=, so a pinned view is shareable. The example is generated from the artefact the link named and does not follow the version bar: the CDR publishes no versioned example resource.

Note

The ADL 2 path catalog is built by the console itself: the CDR serves no Web Template representation of an ADL 2 artefact, so the console reads the AOM2 JSON and derives the same tree the ADL 1.4 detail shows. The CDR wire stays exactly the released REST API.

Deleting an ADL 2 template

ADL 2 rows carry the same Delete affordance the ADL 1.4 rows do, and it behaves the same way: a confirmation dialog naming the artefact, nothing sent until you confirm, the refusal shown with its referencing count when a committed composition still uses the template, and no button at all when the CDR’s admin API is off.

What differs is the resource underneath. An ADL 1.4 delete removes the template registration from the Admin API’s template store; an ADL 2 delete removes the whole artefact (archetype, template or OPT) from the definition store, which keeps no version history of it, so the deleted release version is simply gone. Other versions of the same HRID family are untouched: each is its own artefact, deleted from its own row. The route is admin-gated like the rest, so a session without the ADMIN role is refused with a message naming what is missing.

EHR browser

Find an EHR by id (or browse the most recent), then work through its tabs: EHR status, the status version history, the folder directory, the composition list, contribution lookup, and the EHR’s item tags. Find-by-id is a plain form: it works in a browser with JavaScript disabled, and /ehrs?find=<ehr_id> is a shareable shortcut straight to an EHR.

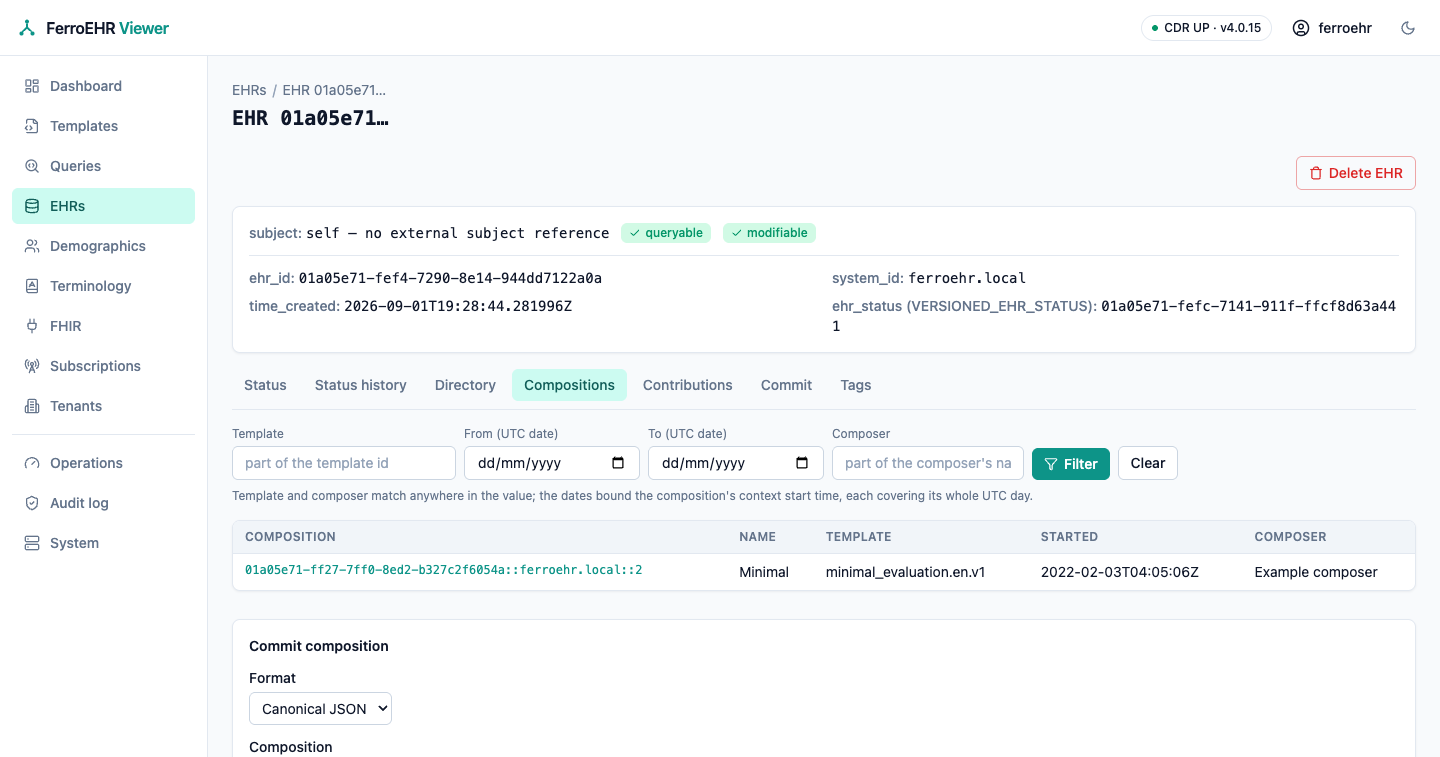

The EHR detail screen opens with a summary header. Its top line answers “whose record is this, and what may be done with it”: the subject, the external id and namespace the EHR status references, or an explicit “self — no external subject reference” when the EHR is bound to no outside identity, next to the queryable and modifiable badges. Below it are the EHR resource’s own facts: its id, the system that created it, when it was created, and the reference to its current EHR status. A mistyped or unknown id is reported there, once, instead of once per tab.

The identity line and the Status tab read the same EHR status document, so they can never disagree: saving a status change updates both at once.

Filtering an EHR’s compositions

The compositions tab lists the EHR’s compositions newest first, with their template, context start time and composer, and narrows on four filters:

• Template: matches anywhere in the composition’s template id.
• From / To: bound the composition’s context start time. Each is a date and covers its whole UTC day, so a From and To of the same day keeps everything recorded during it.
• Composer: matches anywhere in the composer’s name.

Every filter lives in the URL (?template=, ?from=, ?to=, ?composer=), so a filtered view is a link you can share or bookmark, a reload keeps it, and the browser’s back button walks the filters you tried. Applying a filter starts again at the first page. Leave them all empty for the plain list.

The filtering happens in the CDR, as one AQL query: what you type is bound as a query parameter, never pasted into the query text, so an id containing quotes, wildcards or anything else is matched literally. An empty result says whether the EHR holds no compositions at all or simply none that match.

Clicking a composition opens it in the viewer’s Rendered clinical reading (below) rather than the raw document; the other views are one click away.

Deleting an EHR

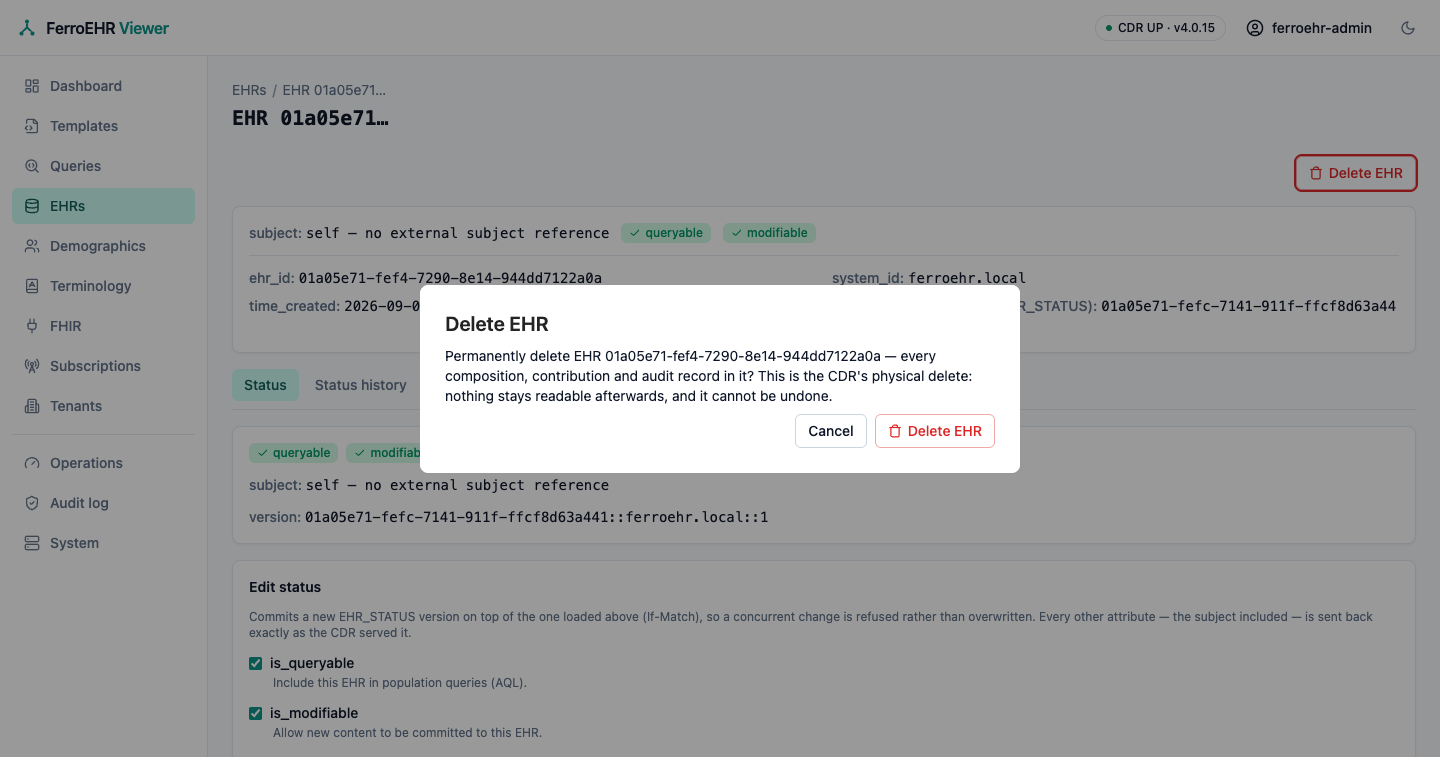

With the CDR’s admin API enabled, the EHR detail screen offers Delete EHR above the tabs. The confirmation dialog spells out the EHR id and what goes with it: this is the CDR’s physical delete, so every composition, contribution and audit record under the EHR is removed, and it cannot be undone. On success the console returns to the EHR list; a session without the ADMIN role is refused with a message naming what is missing. Without the admin API the button is not rendered at all.

Warning

Use this for test data. It is not the openEHR logical delete: nothing stays readable afterwards.

Creating EHRs and committing compositions

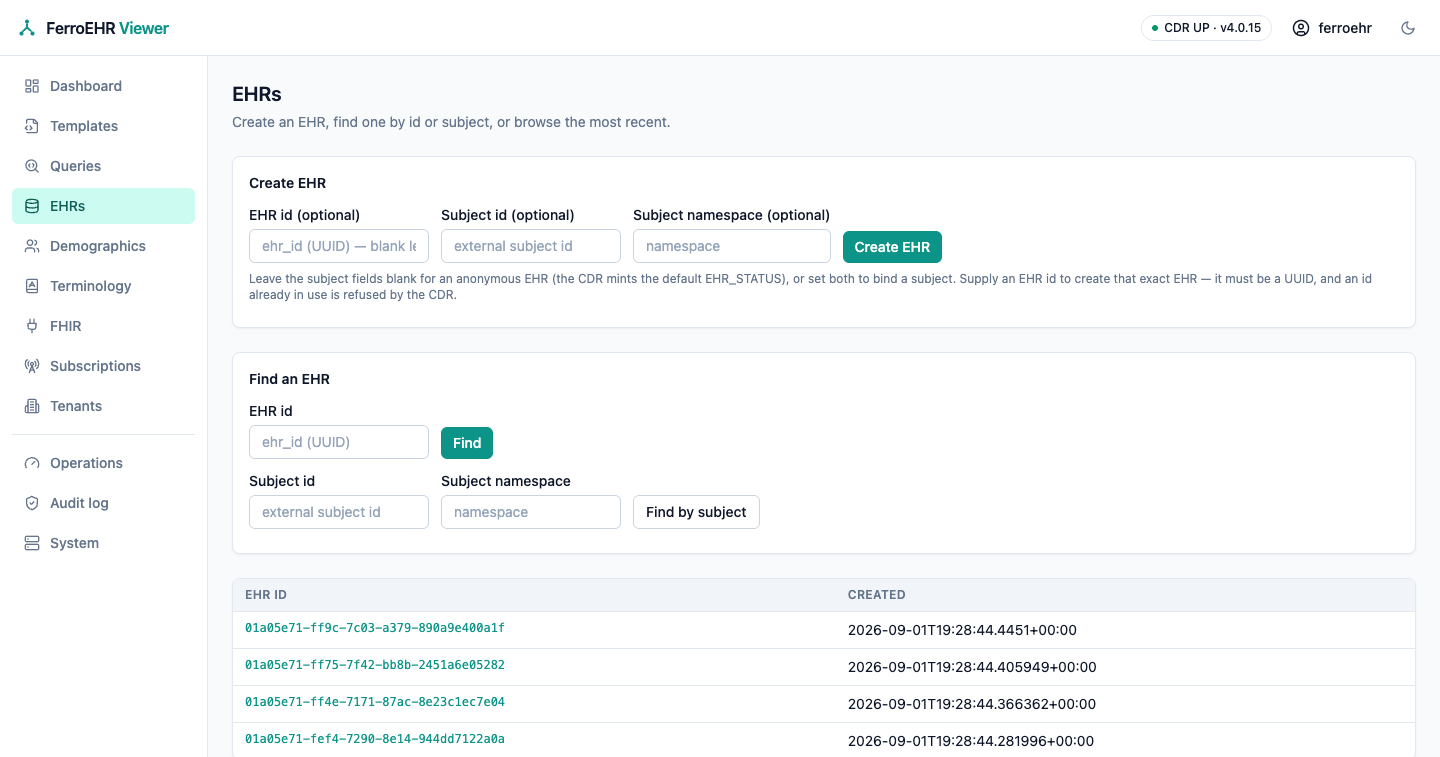

The EHRs screen can create an EHR (empty, or bound to an external subject: id + namespace) and find an existing one by subject id as well as by EHR id. The create card also takes an optional EHR id: leave it blank and the CDR mints one, or supply a UUID to create that exact EHR. A value that is not a UUID is refused before anything is sent (openEHR strongly recommends a UUID for a client-supplied EHR id), and an id that is already in use comes back as the CDR’s own conflict; nothing is silently overwritten.

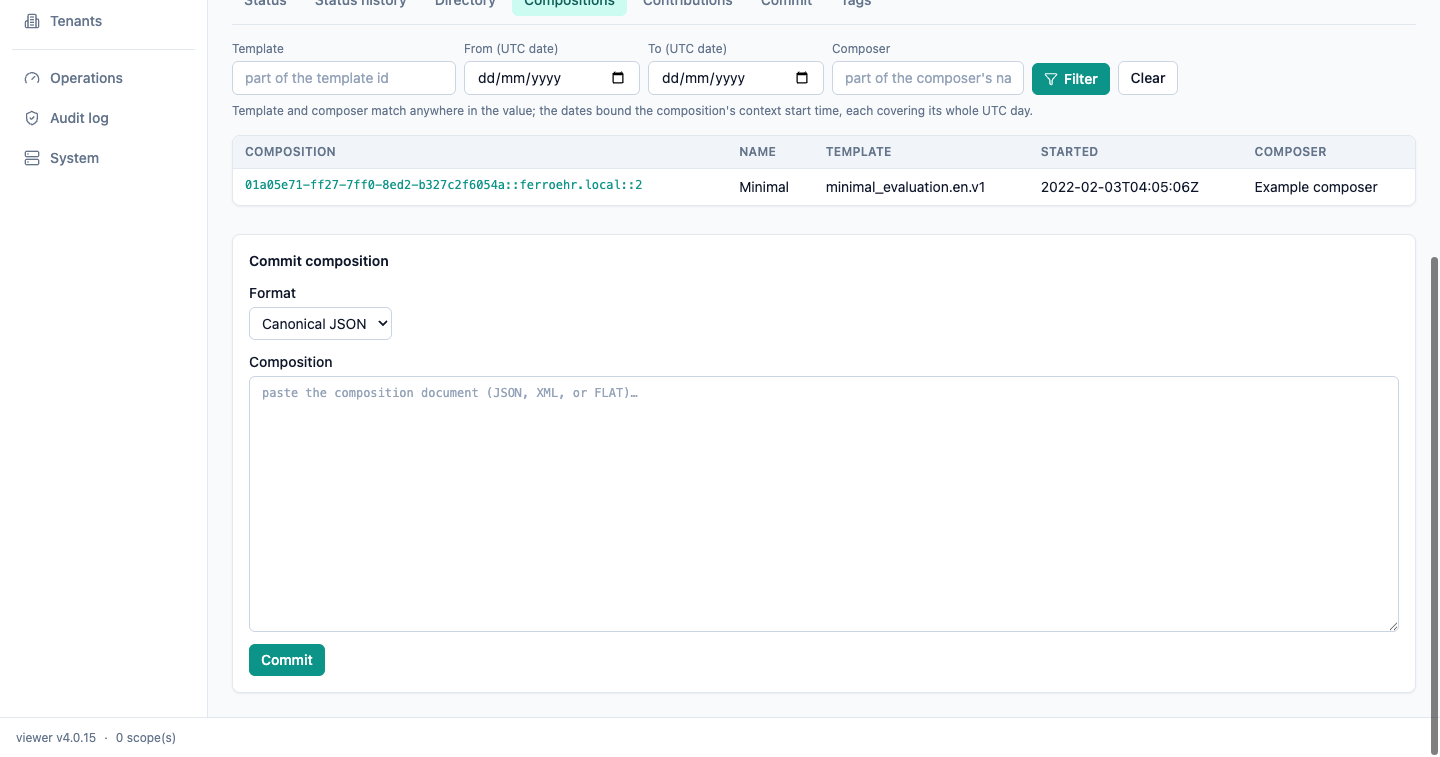

The EHR detail screen’s compositions tab includes a Commit composition form: paste a canonical JSON, canonical XML, or FLAT document (FLAT requires the template id, sent as the openehr-template-id header) and the CDR’s validation diagnostics are shown verbatim on rejection.

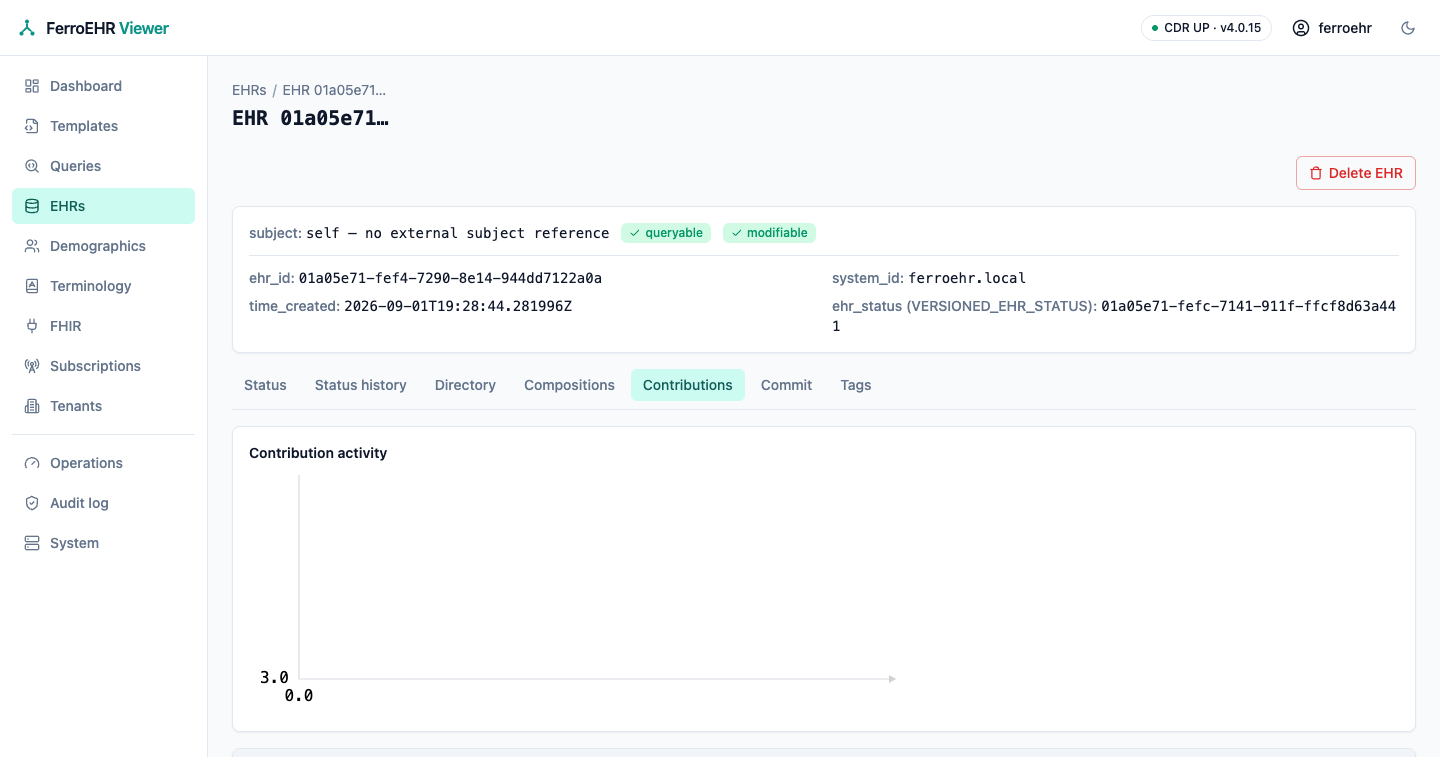

The contributions tab opens with a contribution activity timeline: writes to this EHR per calendar day, bucketed from a wider window of the same contribution data the paged list below it shows.

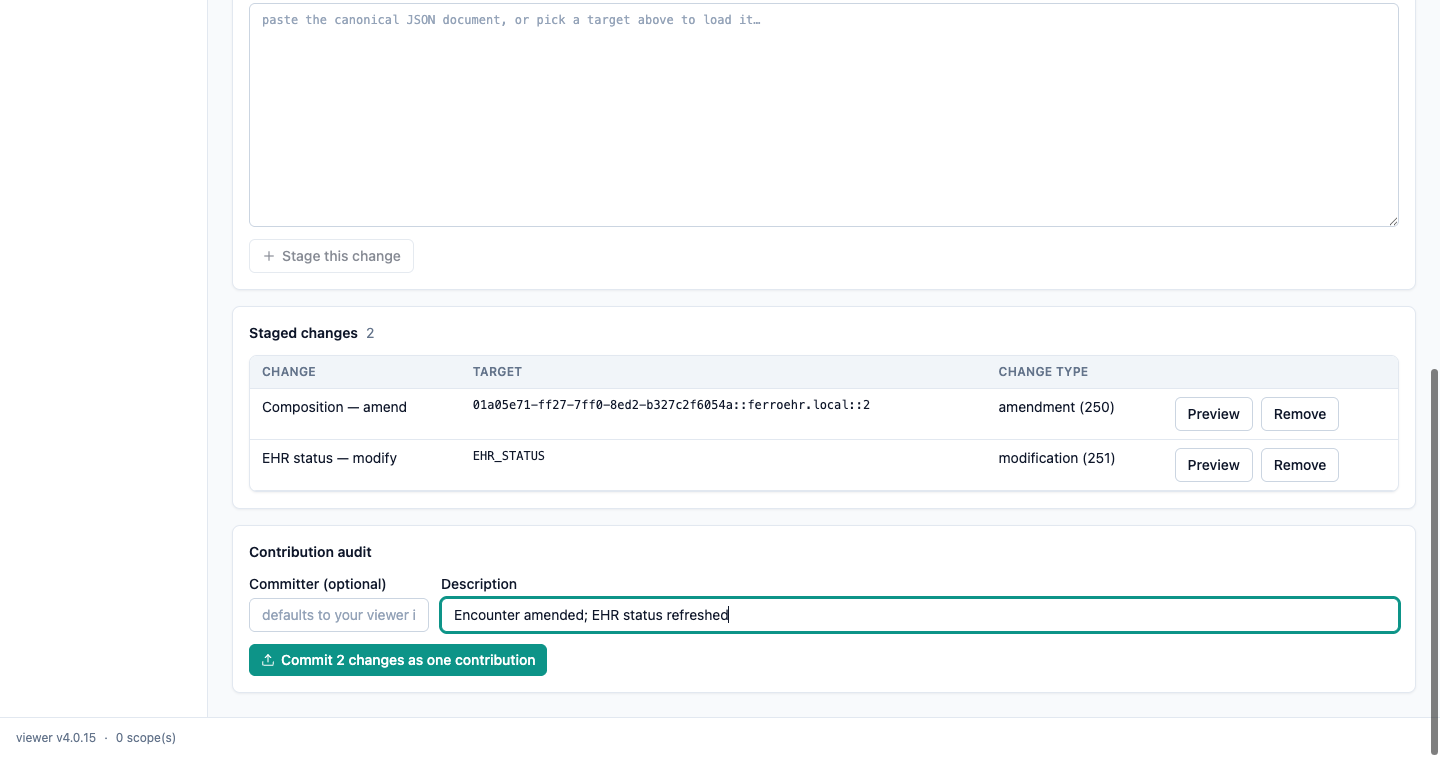

Committing several changes at once

Each form above commits one thing. When changes belong together (a new composition and the EHR status that goes with it) the Commit tab commits them as one openEHR contribution: an atomic change set. Every staged change is committed together, or none of them is. Nothing is written halfway.

Build the change set one entry at a time. Each entry is one of three things:

• Composition — create: pick the template and paste the canonical JSON document. This commits a brand-new composition.
• Composition — amend: pick one of the EHR’s existing compositions. Its current version is loaded into the editor for you, and the change carries that version as the one it supersedes, so a concurrent write is refused rather than overwritten.
• EHR status — modify: the EHR’s current status is loaded the same way; edit it and it commits as a new status version.

The change type offered for each entry is exactly what the openEHR wire accepts for it: a creation for a new composition, an amendment or a modification for anything that supersedes an existing version. The contribution audit below the list carries the change set’s description and, optionally, a committer name; leave it blank and your console identity is used. The commit button always states what it is about to do (“Commit 2 changes as one contribution”).

Note

Staged changes live in the open browser tab only. The console stores nothing of its own, so leaving the screen discards them, and nothing reaches the CDR until you press commit.

On success the tab names the new contribution and every version it created, and links straight to the Contributions tab, where the contribution opens with all of its versions. On refusal nothing at all was committed: the staging list is left exactly as it was, and the CDR’s own diagnostic is shown verbatim so you can correct the offending document and commit again.

Directory editing

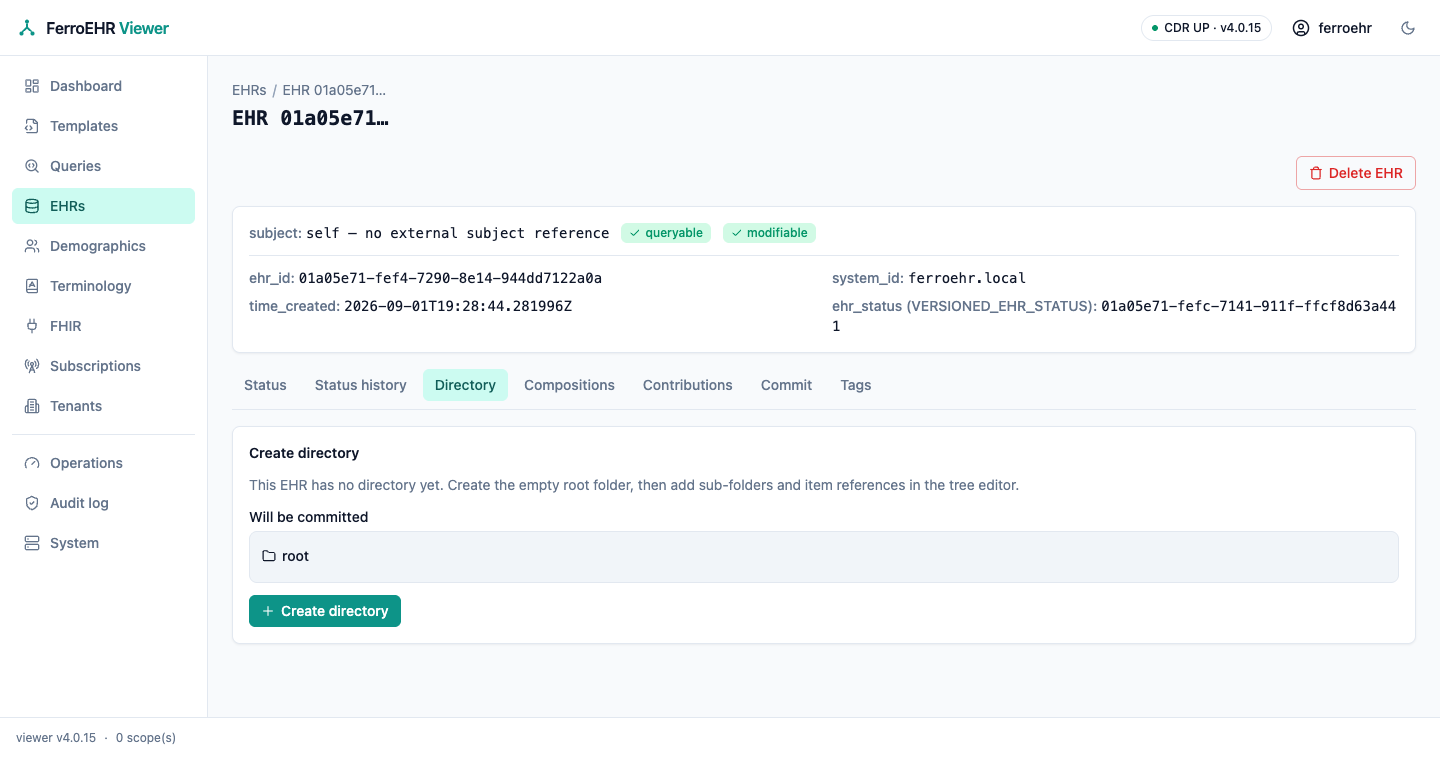

The Directory tab creates the EHR’s FOLDER directory when none exists: it commits the empty root folder, which the tree editor then fills. There is no console-side library of folder shapes; the console stores nothing of its own, and every folder you build is an ordinary directory version the CDR owns and every other openEHR client can see.

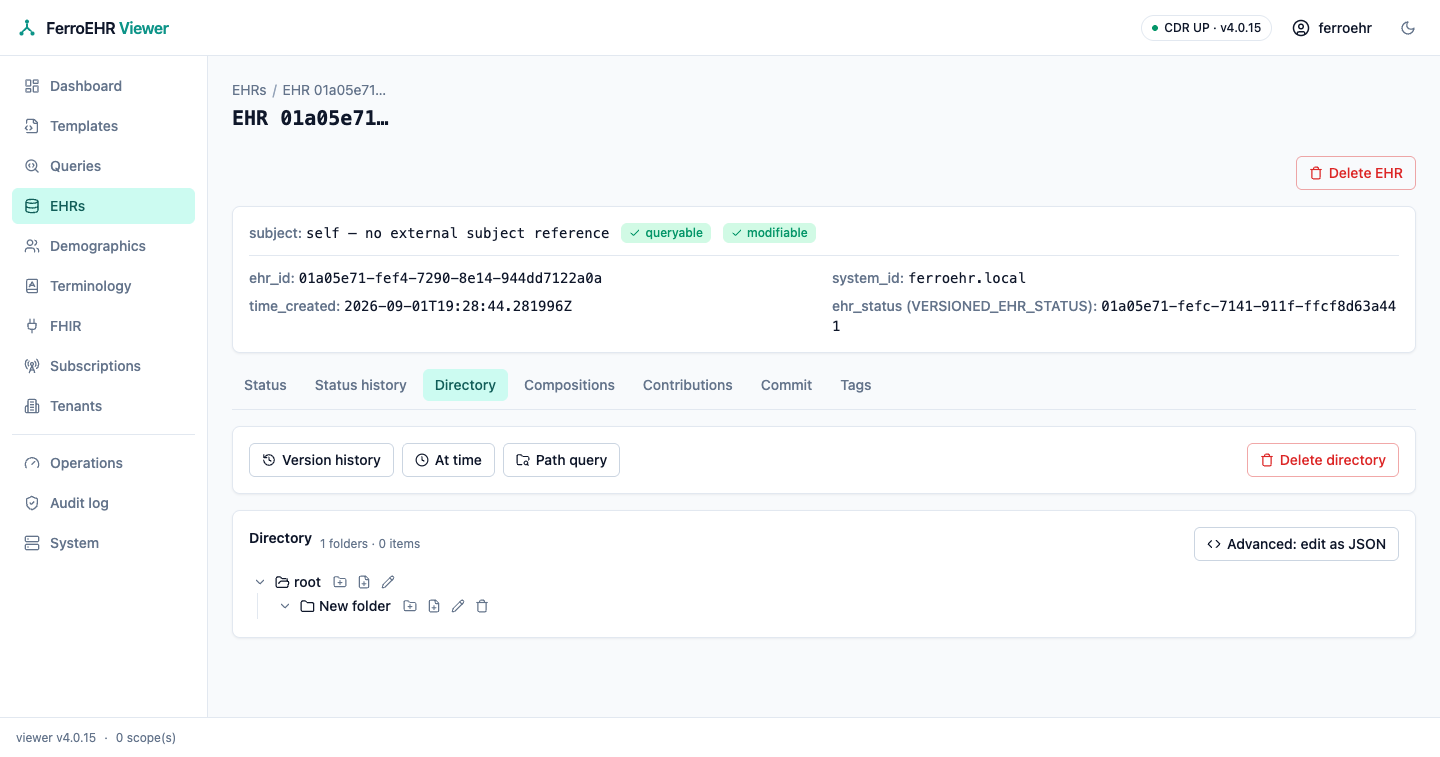

Once the directory exists, the tab is a full structured tree editor: add, rename, and remove sub-folders at any node, and attach or remove OBJECT_REF items: a picker lists the EHR’s compositions, and a manual form covers arbitrary references. Edits accumulate locally until the sticky save bar commits them as one new version (If-Match concurrency: a concurrent change never silently overwrites; a conflict banner keeps your unsaved edits and offers an explicit reload-or-overwrite choice). An advanced mode still edits the canonical JSON directly.

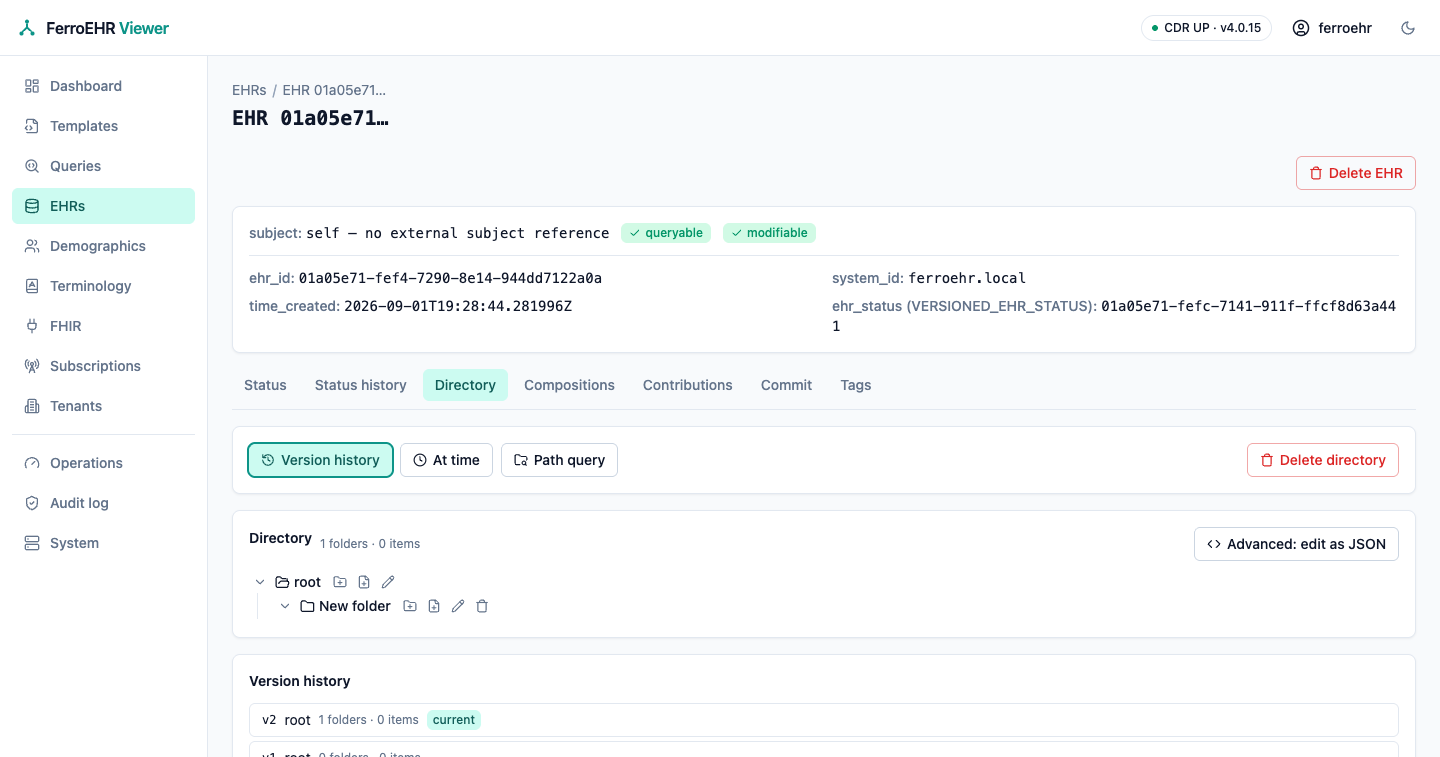

The toolbar adds the read-side tools: version history (every directory version, read-only preview, one-click restore of an older tree), an At time lookup that resolves the directory as it stood at a chosen instant, a path query for one sub-folder, and the two-step directory delete (a logical delete: the history stays readable, and a new directory can be created afterwards).

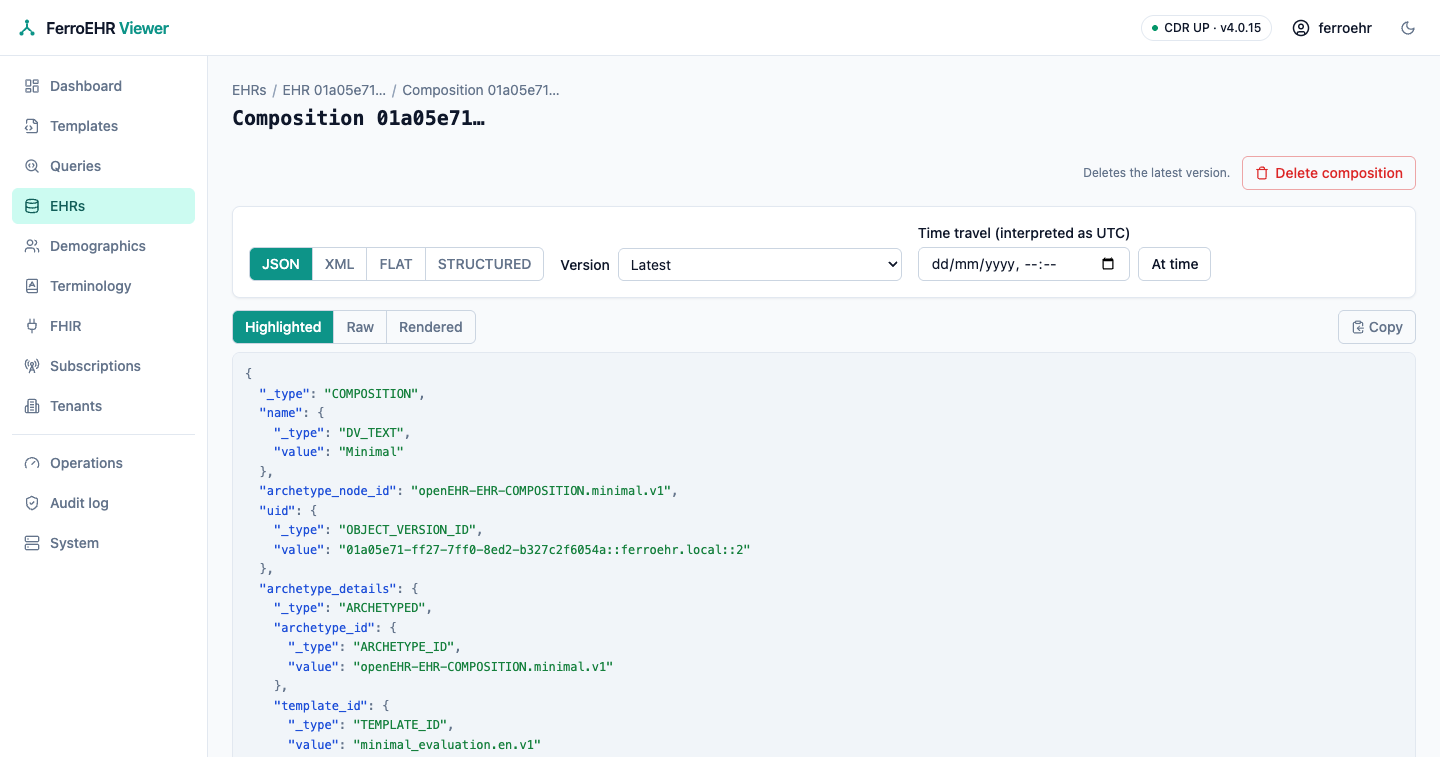

Composition viewer

Any composition renders in canonical JSON, canonical XML, FLAT, or STRUCTURED. Switch freely; the CDR converts. The version dropdown walks the revision history, and each version’s audit (committer, time, change type) is shown alongside.

Every document pane in the console (the composition viewer, the EHR status tab, the directory raw mode, a contribution, a template’s OPT and example tabs) is the same viewer:

• Highlighted (the default): the document exactly as the CDR returned it, with JSON and XML syntax highlighting. The highlighter is pure Rust, like everything else in the console; very large documents are shown unstyled rather than tokenized.
• Raw: the same text with no highlighting.
• Rendered: a template-free clinical reading of a canonical openEHR JSON document: RM section headings with their type and archetype node id, and one label/value row per ELEMENT (quantities with their units, coded text with its terminology code, a null-flavoured leaf saying so). It needs no operational template, so a composition whose template has since been removed still reads normally. The tab appears only for canonical JSON; bookkeeping (language, territory, category, uid) is folded away, and the raw views remain the complete record.
• Copy puts the raw document text on the clipboard.

Which view a composition opens in is part of its link: ?view=rendered, ?view=raw or ?view=highlighted on the viewer’s URL. That is how the compositions tab’s rows land straight on the clinical reading, and it makes “open this composition the way I am looking at it” a shareable link.

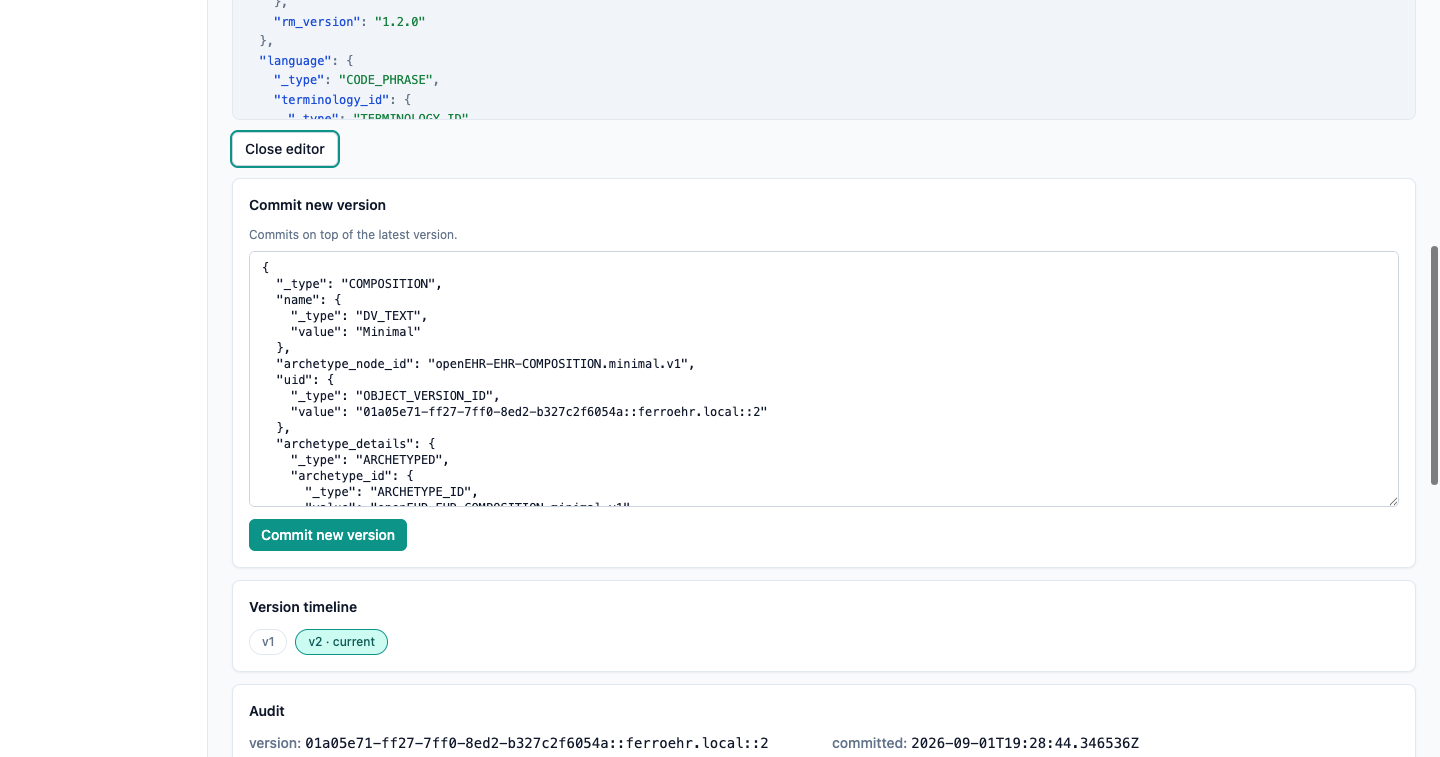

Edit as new version opens the currently displayed canonical JSON in an editor and commits it as the next version (If-Match on the latest version, and a concurrent change is reported instead of overwritten).

A version timeline strip walks the revision history at a glance, and the At time picker resolves whichever version was current at a chosen moment (version_at_time).

A Versioned object card below the audit reads the versioned composition itself and the selected version directly: the versioned-object id, the owning EHR, when the object was first created, and (for whichever version the selector shows) its lifecycle state, its preceding version, the contribution it was committed under, whether it carries a signature, and whether it still carries content.

Tags on a composition

Below the versioned-object card, Tags lists the composition’s item tags (free key/value markers any openEHR client can attach) and sets or deletes one. Three things about them are worth knowing before you use them:

• The panel edits the collection it names. The line under the heading says which one: with the version selector on Latest that is the versioned composition’s own collection; pin a version and the panel edits that version’s tags instead. openEHR keeps the two apart (a tag belongs to exactly one target) so a tag set on the container is not visible on any version, and vice versa.
• Saving re-sends the whole collection, because that is what the openEHR tag update does. The console reads the current tags and merges yours in, so nothing is lost by accident, but the tag operations carry no version check at all, so a tag another client added between your load and your save can be. Reload before editing a busy composition.
• A tag is identified by its key and target path together, so the same key on two different paths is two tags; deleting addresses the key alone and removes both.

A tag write is not a versioned write: it commits no contribution, mints no new version, and never appears in the revision history.

Deleting a composition

Delete composition on the viewer performs the openEHR logical delete of the composition’s latest version, with a confirmation dialog first. The CDR commits a deleted version on top of the current one: the composition stops resolving as current and leaves the EHR’s composition list, while every earlier version and the audit trail stay readable. It is a normal versioned write, so it needs no admin API, but it does need the version to still be the latest one: if it moved on since the screen loaded, the CDR refuses the delete and the message says to reload the history and retry.

Note

This is not the same operation as Delete EHR above, which is the CDR’s physical admin delete and leaves nothing readable.

The EHR detail’s contributions tab lists the EHR’s contributions (id, commit time, committer, change type) with the by-uid lookup kept underneath.

The commit form accepts canonical JSON, canonical XML, or FLAT:

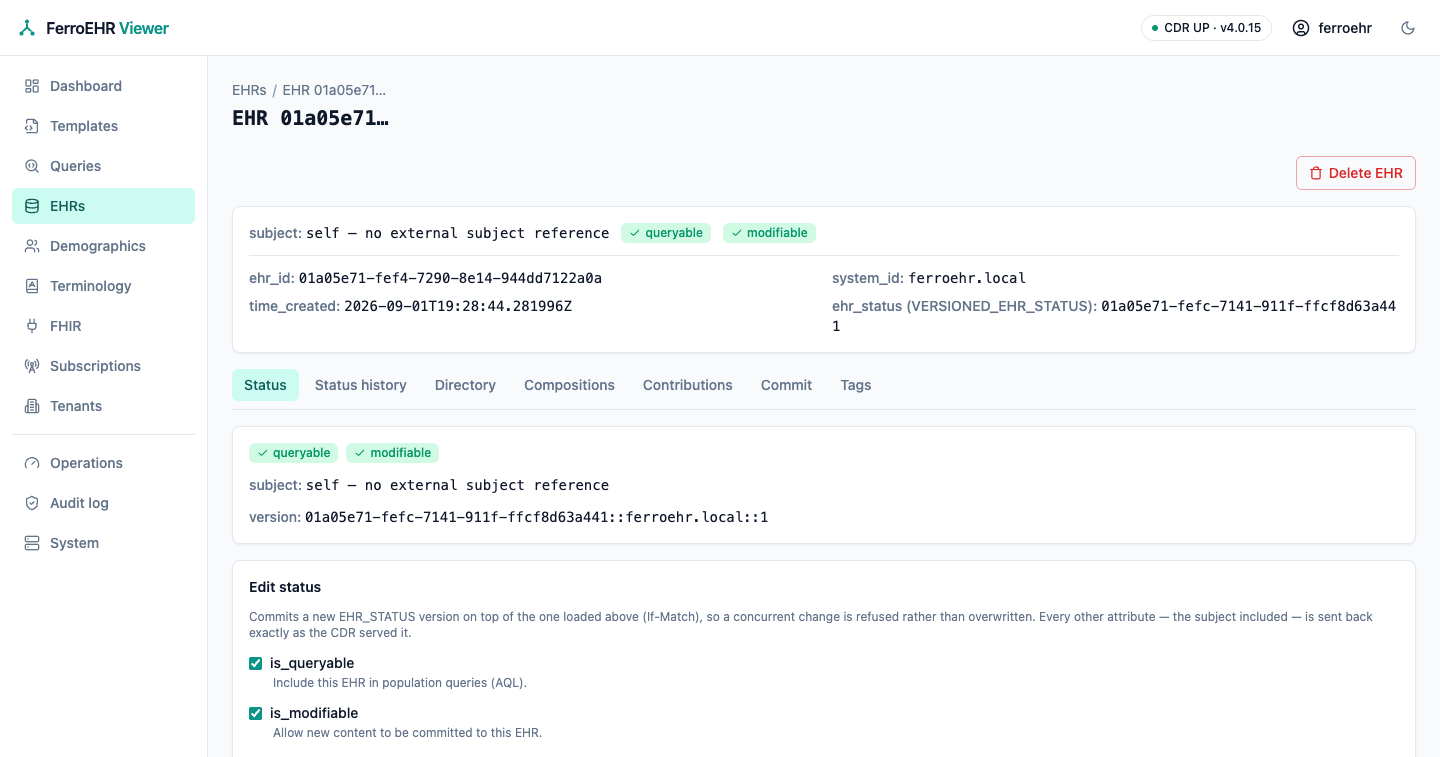

EHR status

The Status tab renders the EHR’s current EHR_STATUS: the queryable and modifiable flags as badges, the subject, the version the document is, and the full document itself. A non-queryable EHR is called out: AQL over it returns nothing.

Below the document, Edit status changes the two flags and other_details:

• tick or untick is_queryable to include the EHR in population queries (AQL), and is_modifiable to allow new content to be committed to it;
• other_details takes a canonical-JSON ITEM_STRUCTURE (for example an ITEM_TREE); leaving it blank removes the attribute. A value that is not a JSON object is refused before anything is sent.

Saving commits a new EHR_STATUS version on top of the one the screen loaded, and every other attribute (the subject included) is sent back exactly as the CDR served it, so nothing the form does not show can be lost.

Note

The save is conditional on the loaded version. If another client committed a new status in the meantime, the CDR refuses the write and the console says so (“EHR status changed on the server”) instead of overwriting the change: reload the tab and reapply your edit. A rejected document keeps the CDR’s own diagnostic on screen, beside the form.

Tags on the EHR status

The Status tab ends with its own Tags panel, the same editor as the composition one. It always edits the versioned EHR status’s collection, so a tag stays put when you edit the status into a new version; the status tab has no version selector, and a tag pinned to a superseded version would quietly disappear. Saving re-sends the whole collection and carries no version check, exactly as on a composition.

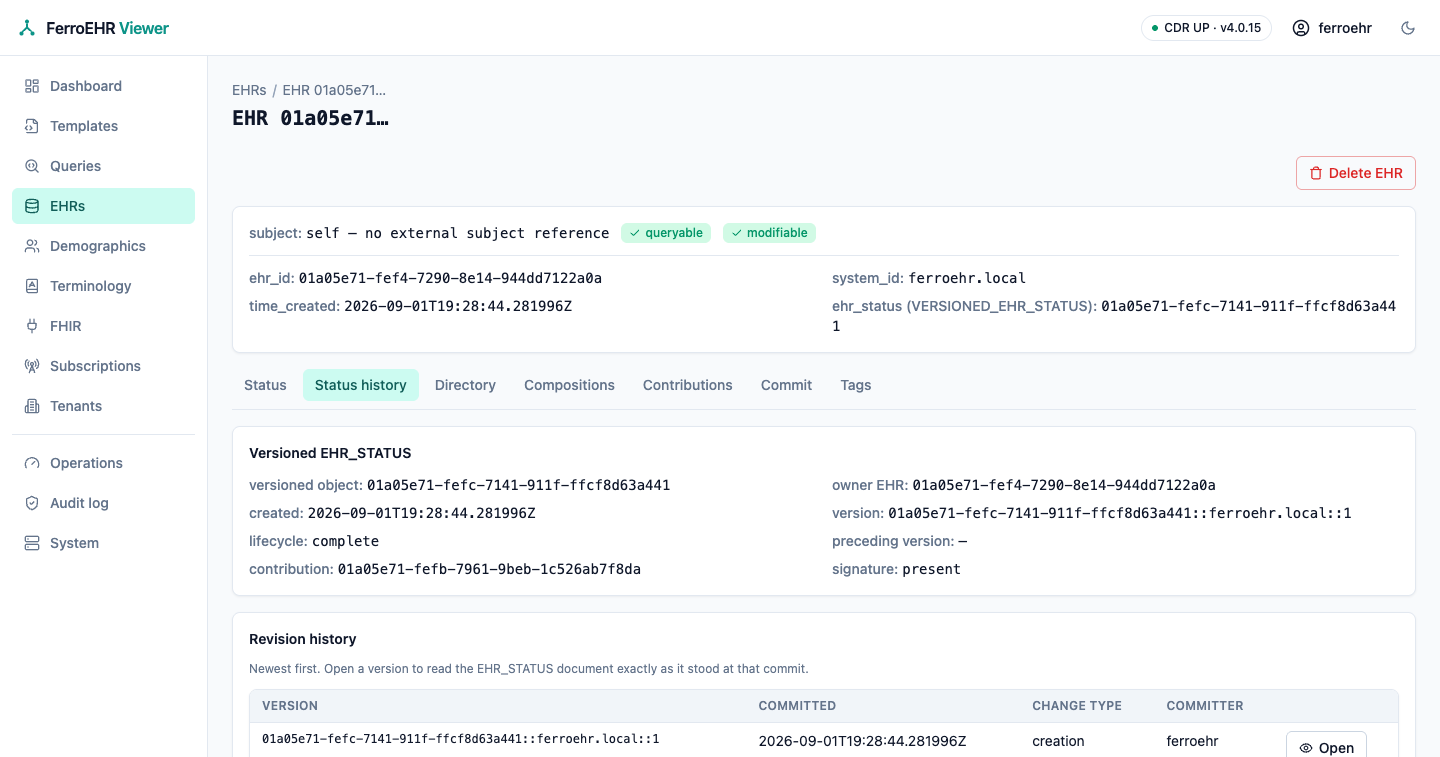

EHR status history

The Status history tab is the versioned view of the same object: the VERSIONED_EHR_STATUS container and the selected version’s envelope facts (lifecycle state, preceding version, contribution, whether it is signed), the revision history newest-first, and a date-and-time lookup that resolves the version extant at that instant. Opening any row, or a resolved instant, shows that version’s EHR_STATUS document exactly as it stood at that commit.

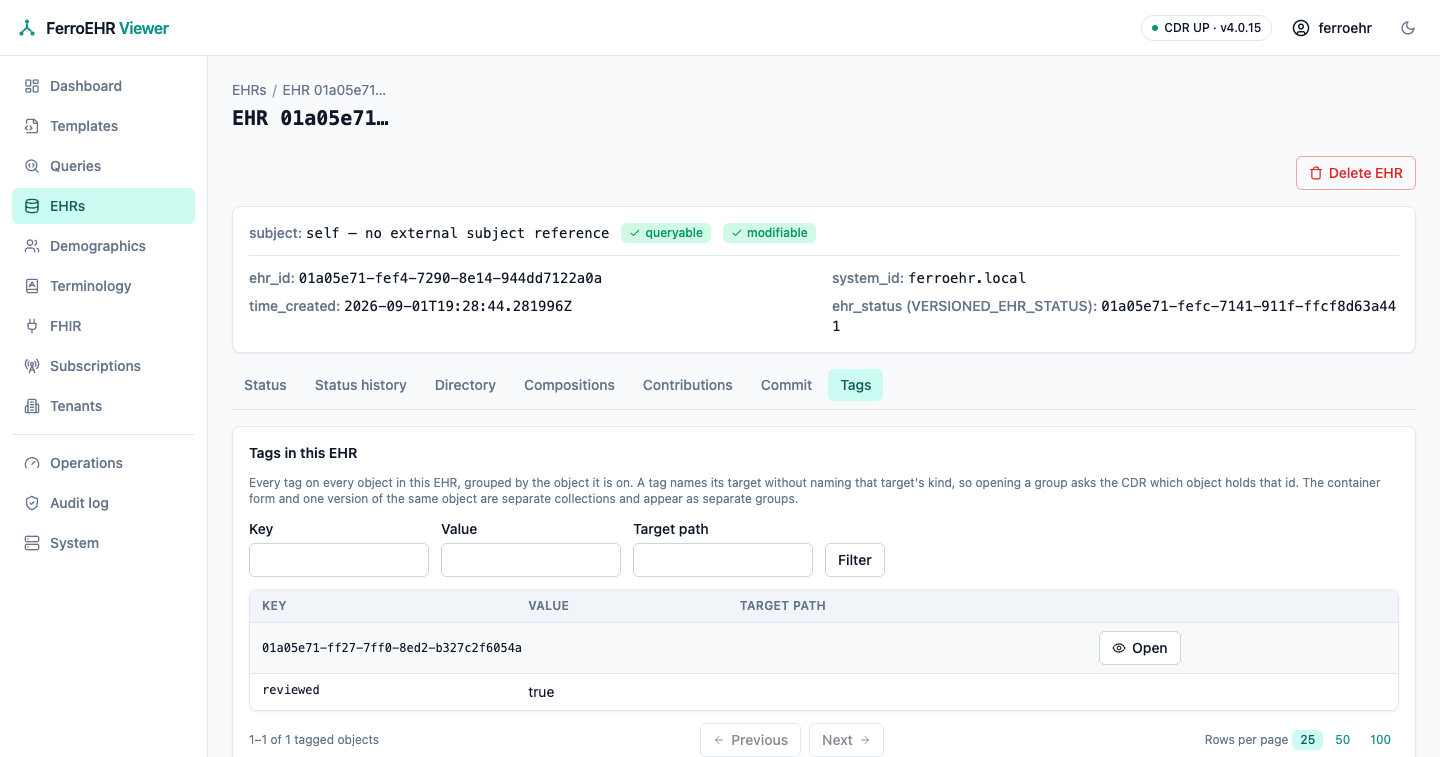

Tags in this EHR

The EHR detail’s Tags tab is the whole EHR’s tag list in one place: every tag on every object under it (compositions, the EHR status, the directory) grouped by the object it sits on. Filter by key, value or target path; the filter lives in the address bar, so a filtered view is shareable and refresh-safe, and the shared footer pages the groups.

A tag names its target by identifier but not by kind, so each group’s Open asks the CDR which object holds that id before going there: a composition opens in the viewer, the EHR status and the directory open on their own tabs. If nothing in the EHR holds it any more (the object was deleted) the tab says so instead of guessing.

The container form and one version of the same object appear as two groups, because openEHR stores them as two separate collections.
