Terminology

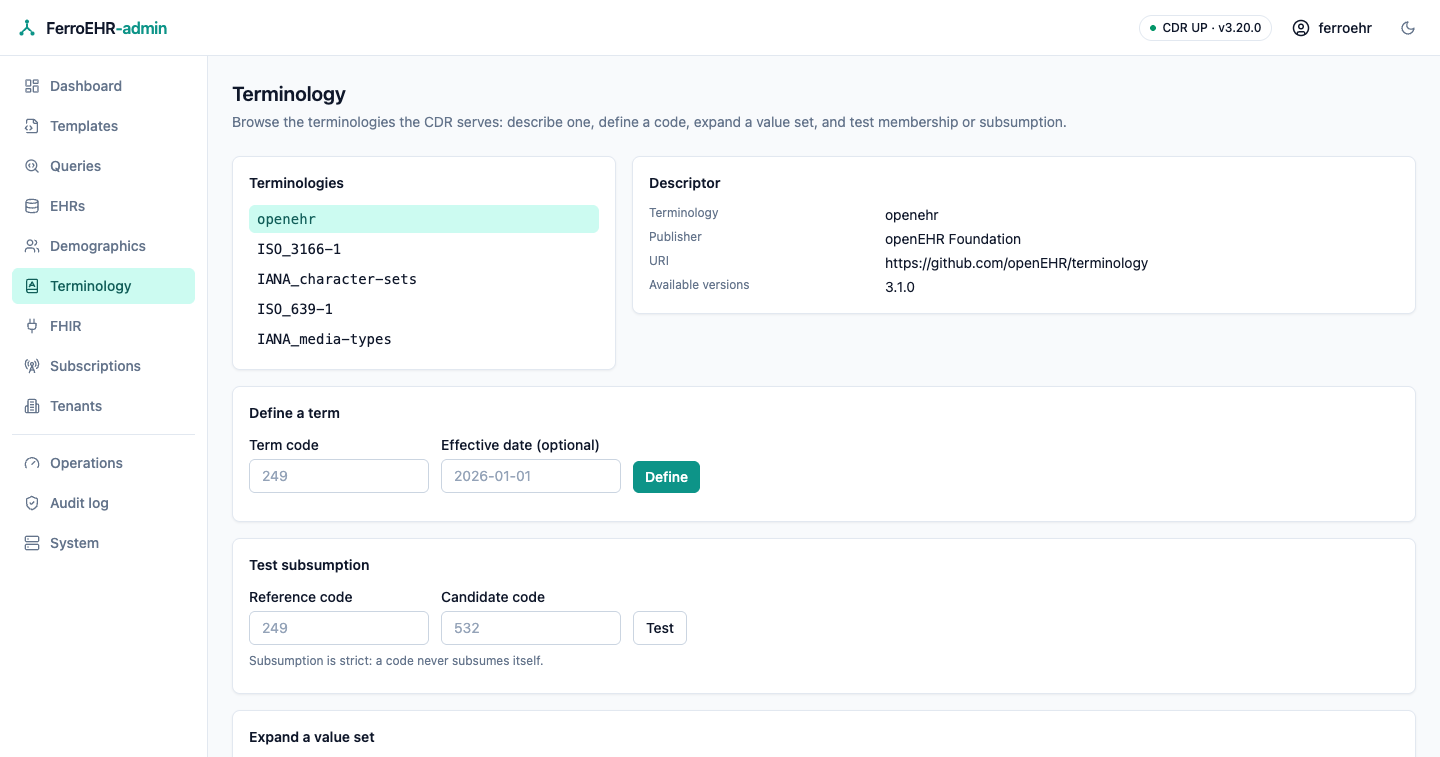

The Terminology screen browses the coded vocabularies the CDR can answer questions about: which terminologies it serves, what a code means, which codes a value set holds, whether a given code is one of them, and whether one code subsumes another. Everything on it is a read of the CDR’s public API; nothing is stored on the console’s side.

• Switching it on
• Picking a terminology
• Defining a term
• Expanding a value set
• Testing subsumption
• Picking codes in the Query Builder

Note

The terminology API is this server’s own extension. openEHR’s REST release publishes no terminology contract, so the operations come from the openEHR Service Model (I_TERMINOLOGY_SERVICE) while the URLs and JSON envelopes are this server’s. A different openEHR server will not serve them.

Switching it on

The surface is opt-in and off by default. While it is off the CDR answers its terminology routes as if they were not mounted, and the screen says so in one card instead of pretending to work:

[terminology]
api_enabled = true

or, as an environment override, FERROEHR__TERMINOLOGY__API_ENABLED=true.

Turning it on exposes only lookups over terminologies the server already holds: the bundled openEHR terminology plus the external code sets beside it. Binding an external FHIR terminology server is a separate setting, and it changes what these lookups can answer; both are covered in Terminology servers.

Picking a terminology

The list on the left is exactly what the CDR reports: the internal openehr vocabulary and the external code sets beside it (languages, countries, character sets, media types). Selecting one puts it in the address bar, so a terminology is shareable and survives a reload, and the choice works before the page’s WebAssembly has loaded.

The Descriptor card beside it shows what the CDR publishes about that terminology: publisher, identifying URI, available versions, and the meta-model attributes an extract request may ask for. Fields the server does not publish are not shown at all rather than filled in with a guess.

Defining a term

Type a code and the screen asks the CDR what it means. A defined term comes back as code — text, with the language it is written in and whether it is the preferred term among alternatives; a code the terminology carries without any display text comes back as the bare code, which is the honest answer rather than a blank.

An effective date is optional. Supplied, it asks for the definition as it stood on that date; left empty, it asks for the current one. The openEHR bundle is a single pinned release, so a date does not change its answer; an external terminology server can.

A code the terminology does not define is reported as a plain note on the card that asked, naming the code and the terminology. It is not an error: asking whether something exists is a legitimate question, and “no” is an answer.

Note

openEHR terminology codes are scoped to their group, not global: 532 is complete in one group and completed in another. A code lookup treats the openehr terminology as flat and returns the first group’s rubric, so use the value-set card below whenever the group matters.

Expanding a value set

A value set is addressed by its id: for the openehr terminology, an openEHR vocabulary group such as audit_change_type or version_lifecycle_state, by its identifier or its display name. Expanding one lists its members as code — text.

Under it, Validate answers one question: is this code a member of that value set? Both verdicts read as a sentence, and a value set the CDR does not know simply has no members, so a code is reported as not a member rather than the question being refused.

Testing subsumption

Subsumption asks whether one code is an ancestor of another. The test is strict, so a code never subsumes itself, and the openEHR vocabulary is flat (it defines no is-a hierarchy) so the honest verdict for any pair of openEHR codes is “does not subsume”. Hierarchical answers come from an external terminology server when one is bound.

Picking codes in the Query Builder

The same lookups back the Query Builder’s coded condition editor, so a coded criterion no longer has to be typed from memory; see Dashboard & queries. The model is unchanged: whatever route a code took into the criterion, the query carries the bare code.
