FHIR connector

The FHIR screen administers the CDR’s FHIR mapping store (the definitions that translate between FHIR resources and openEHR compositions) and gives you two ways to check a mapping does what you meant, without writing anything. Everything on it comes from the CDR’s own FHIR API over HTTP; the console has no privileged channel and keeps no mapping state of its own.

• The console never sends a resource for real
• When it appears
• The mapping store
• Read path
• Dry run

Note

No openEHR specification governs FHIR interoperability; the connector is FerroEHR’s own extension, and its wire vocabulary follows HL7 FHIR R4. What the connector does with a mapping, and every status code it answers, is described in FHIR connectors; this page is about driving it from the console.

The console never sends a resource for real

The connector’s inbound door (POST /fhir/r4/{type}) maps a FHIR resource, validates it, and commits it as an openEHR composition. That is an integration act (something a sending system does, with its own credentials and its own audit trail) so the console deliberately offers no path to it. You cannot ingest a resource from this screen, by design.

What the console does offer is the two read-only ways to verify a mapping:

• the read path, which shows what a stored mapping produces when openEHR data is read back out as FHIR;
• the dry run, which runs a resource through the whole ingest pipeline including validation and reports the verdict, committing nothing.

When it appears

The screen is probe-and-hide: on every page load the console asks the CDR for GET /admin/fhir_mapping, and the sidebar entry appears only if that route exists. A 404 (the CDR’s answer when the connector is off, which is the default) hides the entry entirely; any other answer counts as present, so a refusal reaches you as a message on the screen that asked rather than as a missing screen.

To get the screen, turn the connector on ([fhir]):

[fhir]
api_enabled = true

Reaching /fhir on a deployment without it is not an error either: the screen renders one card naming that switch instead of a store that cannot be read.

Note

The mapping store is mounted under /admin, so the CDR’s role-based access control classes every call here as admin work. The screen renders whenever the surface exists; being allowed to use it is the CDR’s per-request decision, and a session without the ADMIN role is refused with a message naming what is missing.

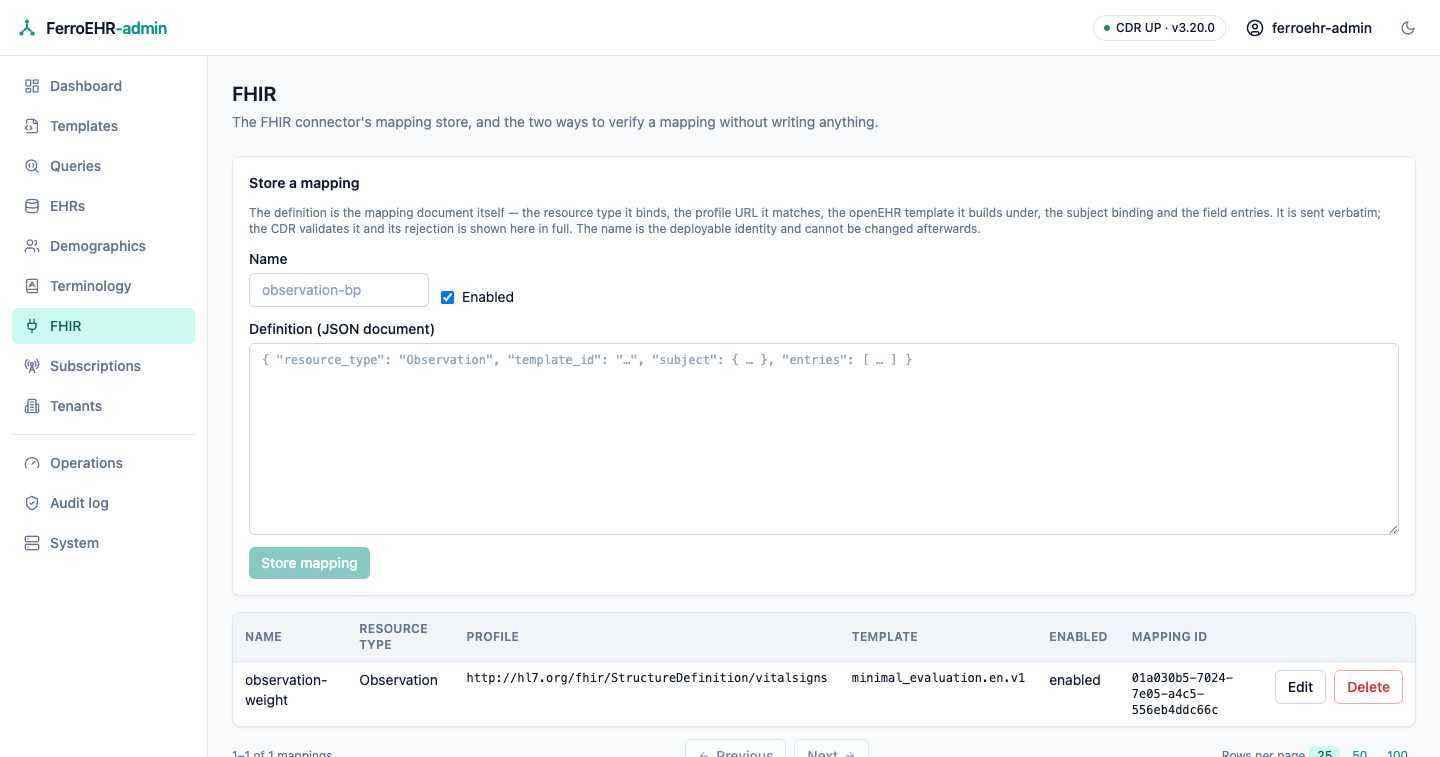

The mapping store

The table lists every stored mapping with its name, the FHIR resource type and profile it binds, the openEHR template it builds under, whether it is enabled, and its store id, newest first, paged by the shared footer under the table (see Paging).

A mapping is edited as a JSON document, and that is deliberate. The definition is a deep, open-ended structure (the subject binding, the commit context, and one entry per mapped field with its own path and transform) whose shape the CDR owns. A form built out of boxes here would be a second model of it that drifts the moment the connector grows a field, so the console sends the document you wrote, verbatim, and shows the CDR’s answer, verbatim. The definition’s shape is documented under Mappings are data you manage.

• Store a mapping with the card above the table: a name and the definition document. The button stays disabled until the name is addressable (letters, digits, _, . and -) and the definition parses as a JSON object; that much the console checks before spending a round trip; everything else is the CDR’s judgement, and its rejection is shown in full beside the failure notification. The most common one on a fresh deployment is an unknown template_id: upload the operational template first.
• Enabled decides whether the connector resolves the mapping at all. A disabled mapping stays stored and editable but takes part in nothing, the way to retire a mapping without deleting it.
• Edit on a row opens the document in an editor, seeded with what is currently stored. The name is not editable: the CDR treats it as the mapping’s deployable identity, so a rename is a new mapping.
• Delete on a row asks for confirmation naming the mapping, and nothing is sent until you confirm there. Deleting a mapping stops the connector accepting and serving that resource type; data already committed through it is untouched, and stays readable through the openEHR API as normal.

Every one of those writes reports both outcomes, and a success and a failure are equally visible, so a refused change never looks like nothing happened.

Warning

Two enabled mappings for the same resource type resolve by meta.profile: an exact profile_url match wins, and a mapping with no profile is the type’s default. A resource that declares no profile only ever matches the default, so a store with profile-scoped mappings and no default answers 404 for plain resources.

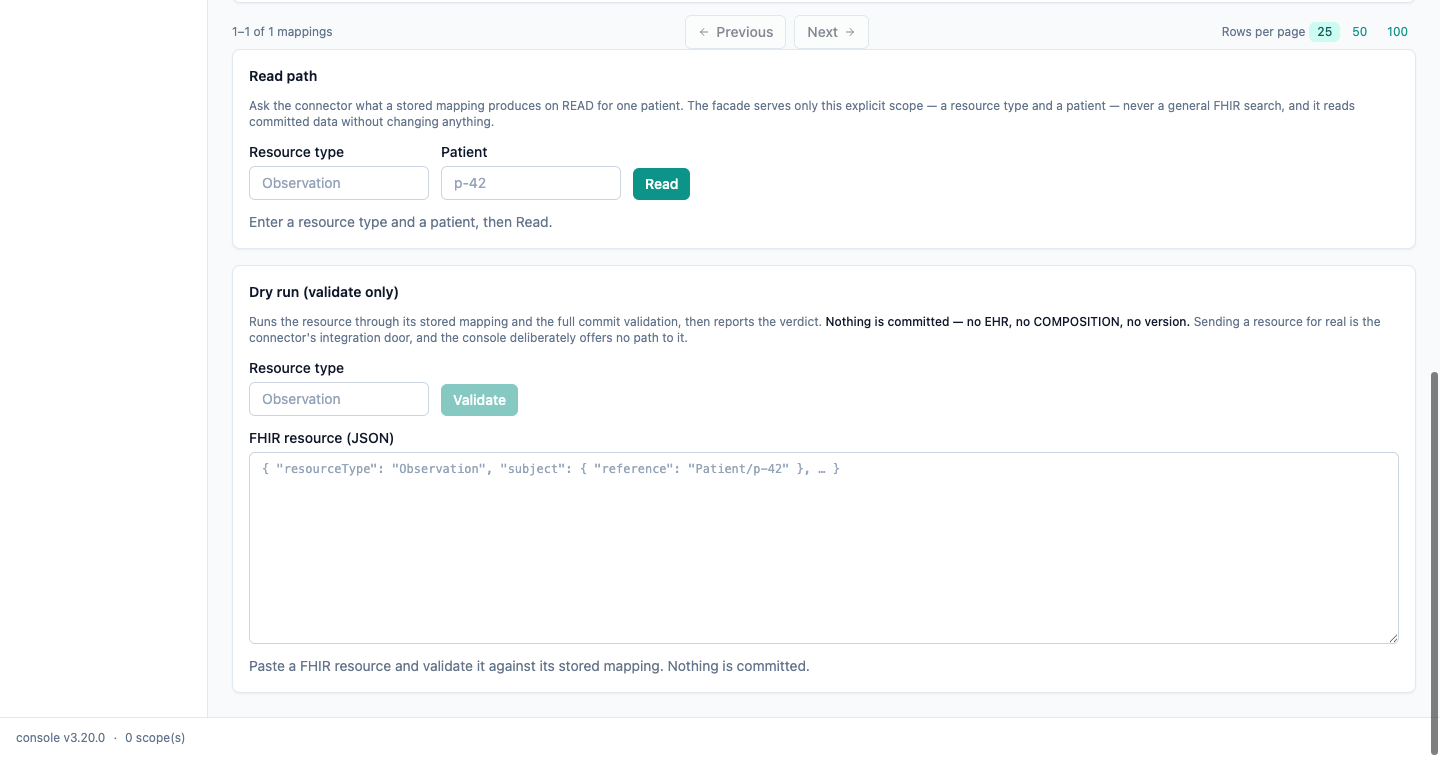

Read path

Enter a resource type and a patient, then Read. The console calls the CDR’s read façade (GET /fhir/r4/{type}?patient=…) and shows the FHIR Bundle it answers with, each entry produced by running a stored mapping in reverse over a committed composition.

The scope lives in the URL, so a read is shareable, survives a reload, and works before the page’s WebAssembly has loaded. Both fields are required: the façade serves this explicit scope only, never a general FHIR search.

Two answers are worth recognising:

• An empty Bundle ("total": 0) means the mapping resolved and nothing is stored for that patient: an answer, not a failure. Check the patient identifier against the mapping’s subject binding: the connector strips the configured prefix (Patient/) and matches the remainder in the configured namespace.
• An OperationOutcome is the connector refusing the read: an unsupported resource type, a missing scope. It is rendered exactly as the CDR wrote it, inline, because its diagnostics text is the answer to what went wrong.

Dry run

Paste a FHIR resource, name its type, and Validate. This calls the CDR’s $validate operation, which runs the full ingest pipeline (mapping resolution, the composition build, the provenance stamp, and the same validation the real commit runs) and then throws the result away.

Nothing is committed: no EHR, no composition, no version. The target EHR is resolved and reported, never created.

The panel reports one of three verdicts, and the difference matters:

The full OperationOutcome is shown under the verdict either way. This is the loop mapping development is meant to run in: edit the definition above, dry-run a real sample resource, read the rejection, repeat, and only point the sending system at the real ingest door once the verdict reads valid.
