Event subscriptions

The Subscriptions screen administers the CDR’s event subscriptions: the server-side filters that decide which committed versions are published to your message broker, and to which queue. Everything on it comes from the CDR’s own subscription API over HTTP; the console has no privileged channel and keeps no subscription state of its own.

• When it appears
• What a subscription is
• Administering them

When it appears

Change eventing is an extension: no openEHR specification governs event publication or a subscription resource, so the whole surface (its paths, its payloads, its status codes) is this CDR’s own design, and it is off unless a deployment turns it on. See Change events (AMQP) for what the stream carries and how a queue is bound.

The screen is probe-and-hide: on every page load the console asks the CDR for GET /admin/event_subscription, and the sidebar entry appears only if that route exists. A 404 (the CDR’s answer while the subscription API is off, which is the default) hides the entry entirely; any other answer counts as present, so a refusal reaches you as a message on the screen that asked rather than as a missing screen.

To get the screen, turn the subscription API on ([events]):

[events]
admin_api = true     # mount /admin/event_subscription

Reaching /subscriptions on a deployment without it is not an error either: the screen renders one card naming that switch instead of a table that cannot be read.

Note

admin_api and enabled are separate switches, and this screen needs only the first. Subscriptions are stored whether or not the publisher is running, so you can define them before a broker exists; they start being delivered when [events] enabled = true connects the server to one.

Note

The API is mounted under /admin, so the CDR’s role-based access control classes every call here as admin work. The screen renders whenever the surface exists; being allowed to use it is the CDR’s per-request decision, and a session without the ADMIN role is refused with a message naming what is missing.

What a subscription is

A subscription is a name plus four predicates, each of which matches one facet of a committed version:

A field left empty matches anything. The console says so in every cell (an unset predicate reads any, never a blank) and each row carries a plain-words line saying what it selects, so “matches every committed version” is visible rather than inferred from four empty boxes.

The name is unique on the CDR and is also the suffix of the queue the server declares for the subscription (ferroehr.events.<name> with the default exchange), so it may hold only letters, digits, and _, . or -. The create button stays disabled until the name you typed is one the CDR can accept, and the name cannot be changed afterwards; a rename would be a different queue.

State is the enabled flag: an enabled subscription is one the server binds and delivers to; a disabled one is kept, exactly as you defined it, and not delivered. Disabling is therefore the reversible way to stop a feed.

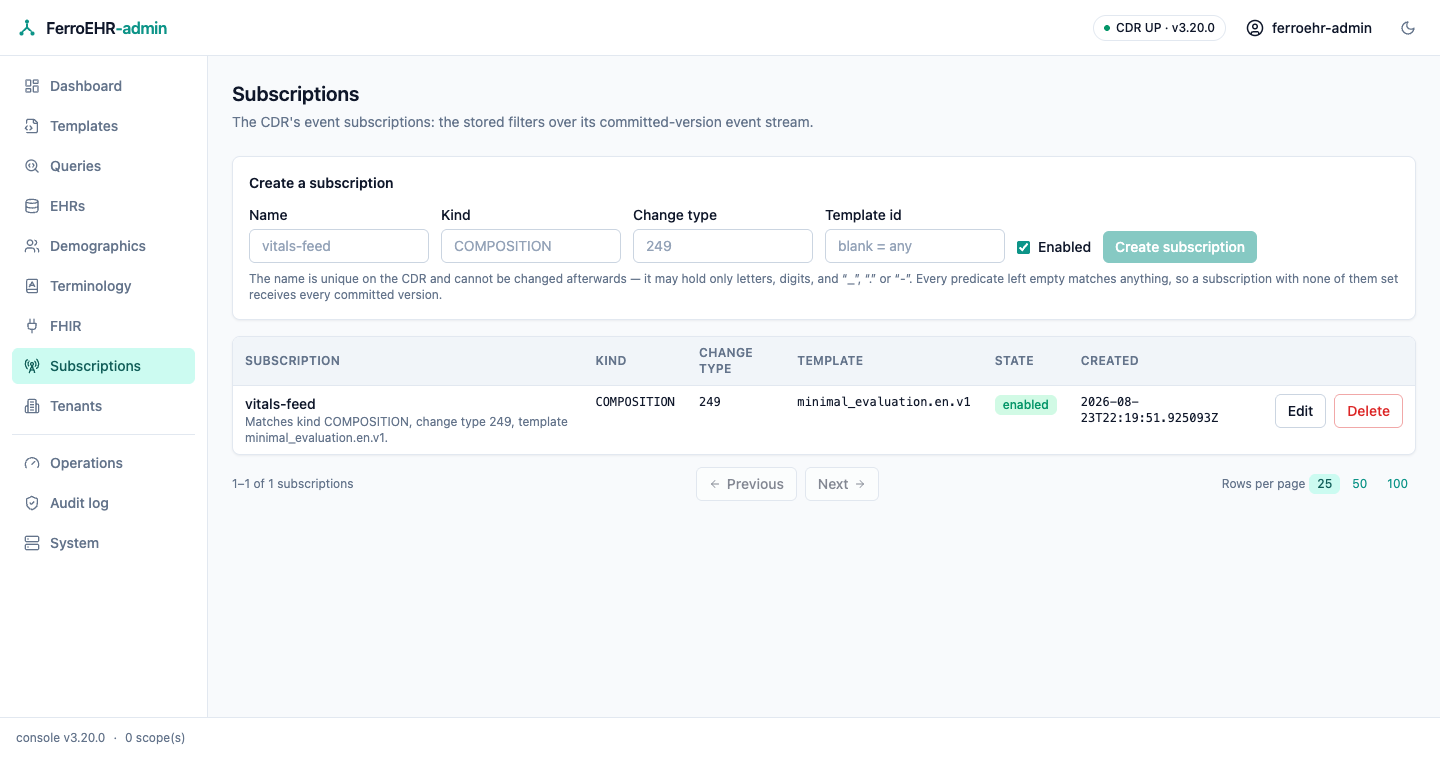

Administering them

The table lists every stored subscription, newest first, paged by the shared footer under the table (see Paging).

• Create with the card above the table: a name, and as many predicates as you want to narrow by. Leave them all empty for a feed of everything.
• Edit on a row opens an editor seeded with that subscription’s current values. Saving replaces every predicate, so a field you clear becomes any on the CDR: that is the whole update, not a patch. The name is shown and never editable.
• Delete on a row asks for confirmation naming the subscription and what it matches, and nothing is sent until you confirm there.

Every one of those writes reports both outcomes, and a success and a failure are equally visible, so a refused change never looks like nothing happened, and the CDR’s own words (a duplicate name, a rejected value) are shown in full beside the failure notification.

Warning

Deleting a subscription stops the server binding its queue; it does not delete the queue from your broker. A durable queue left behind keeps whatever it already holds and stops receiving new messages, so reap orphaned queues on the broker side as part of the same change.
